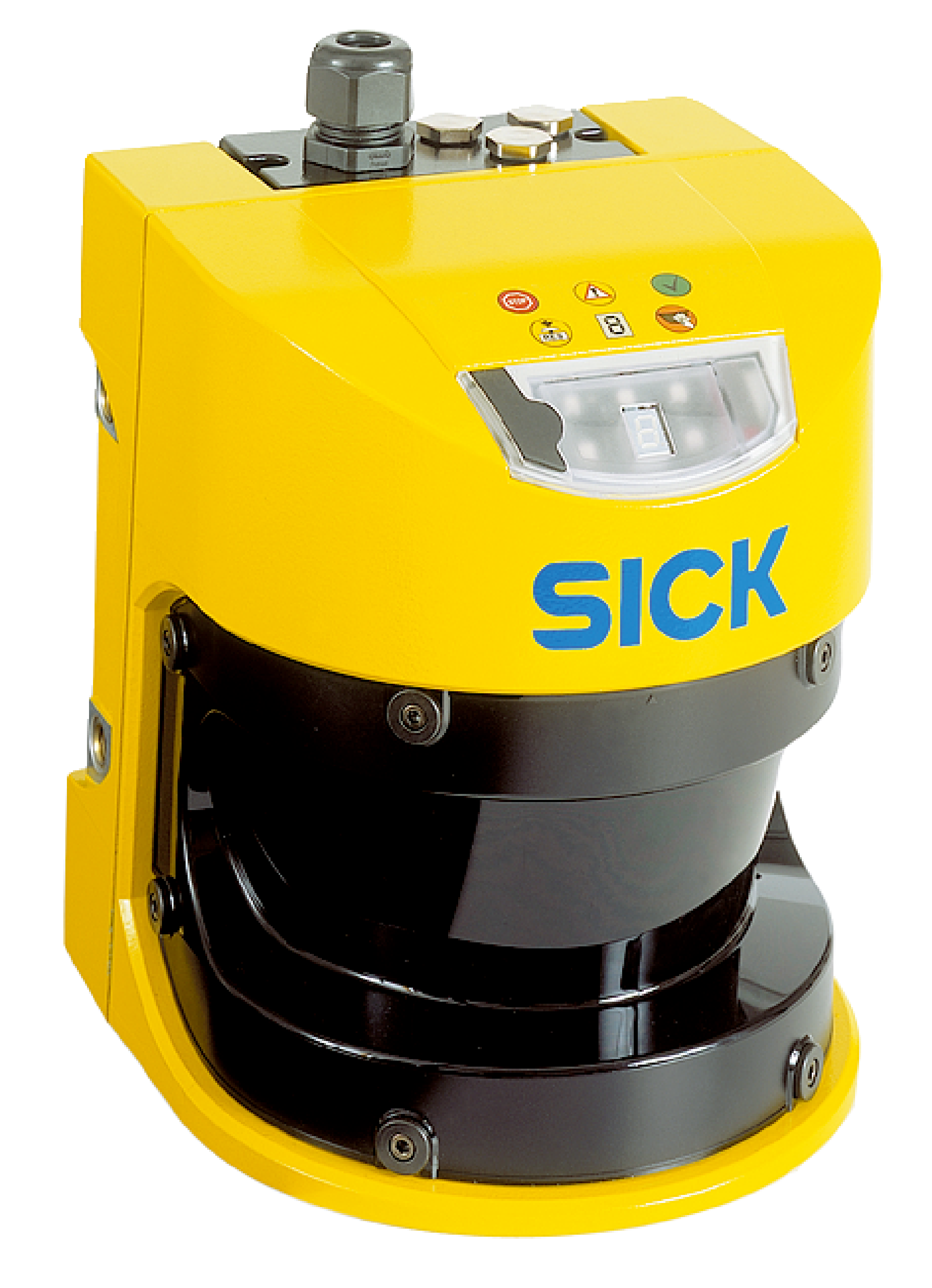

Safety Laser Scanner S30A-4011BA | 4m Protective Range | 49m Warning Range | IP65 Rated | by SICK
The Safety Laser Scanner S30A-4011BA offers a protective field range of 4 meters and a warning field range of up to 49 meters, making it ideal for indoor safety monitoring and industrial automation. With the ability to monitor up to 4 protective fields simultaneously and a fast response time of 60 ms, this sensor ensures optimal safety in machine guarding applications. Its robust aluminum housing and IP65 rating provide durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Laser Scanner, Industrial Safety Sensor, Machine Guarding Sensor, Protective Field Sensor
Technical Specifications
- Model: Sensor without system plug
- Protective field range: 4 m
- Warning field range: 49 m (20 m at 20% reflectivity)
- Distance measuring range: 49 m
- Number of simultaneously monitored protective fields: ≤ 4
- Type of field set: Triple and dual field sets
- Number of fields: 4
- Scanning angle: 190°
- Resolution: Configurable 30 mm to 150 mm
- Angular resolution: 0.5° or 0.25° depending on range
- Response time: 60 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V to 28.8 V DC)
- Power consumption: 0.8 A to 2.3 A
- Outputs: 2 x 500 mA OSSD, 3 x 100 mA diagnostic outputs
- Housing material: Aluminum die cast
- Front screen material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Laser type: Pulsed laser diode, wavelength 905 nm
- Laser class: Class 1
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.3 kg
Key Features
- Protective field range of 4 m and warning field range up to 49 m
- Supports up to 4 simultaneously monitored protective fields
- Triple and dual field set types with 190° scanning angle
- Configurable resolution from 30 mm to 150 mm
- Fast response time of 60 ms
- Safety integrity level SIL 2 and Category 3 safety rating
- Integrated configuration memory and multiple sampling
- Outputs include 2 OSSD switching devices and 3 diagnostic outputs
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Indoor safety monitoring
- Industrial automation safety
- Machine guarding and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK S30A-4011BA safety sensor is available for immediate purchase, ideal for indoor industrial safety and machine guarding applications.
