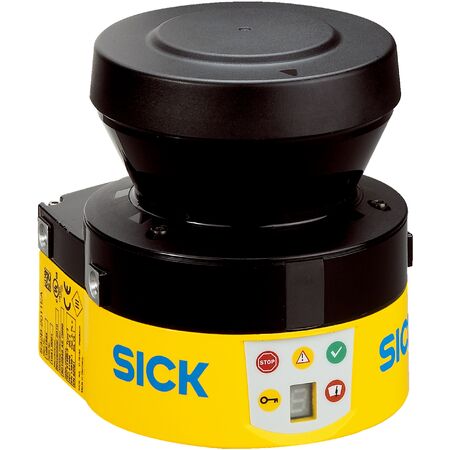

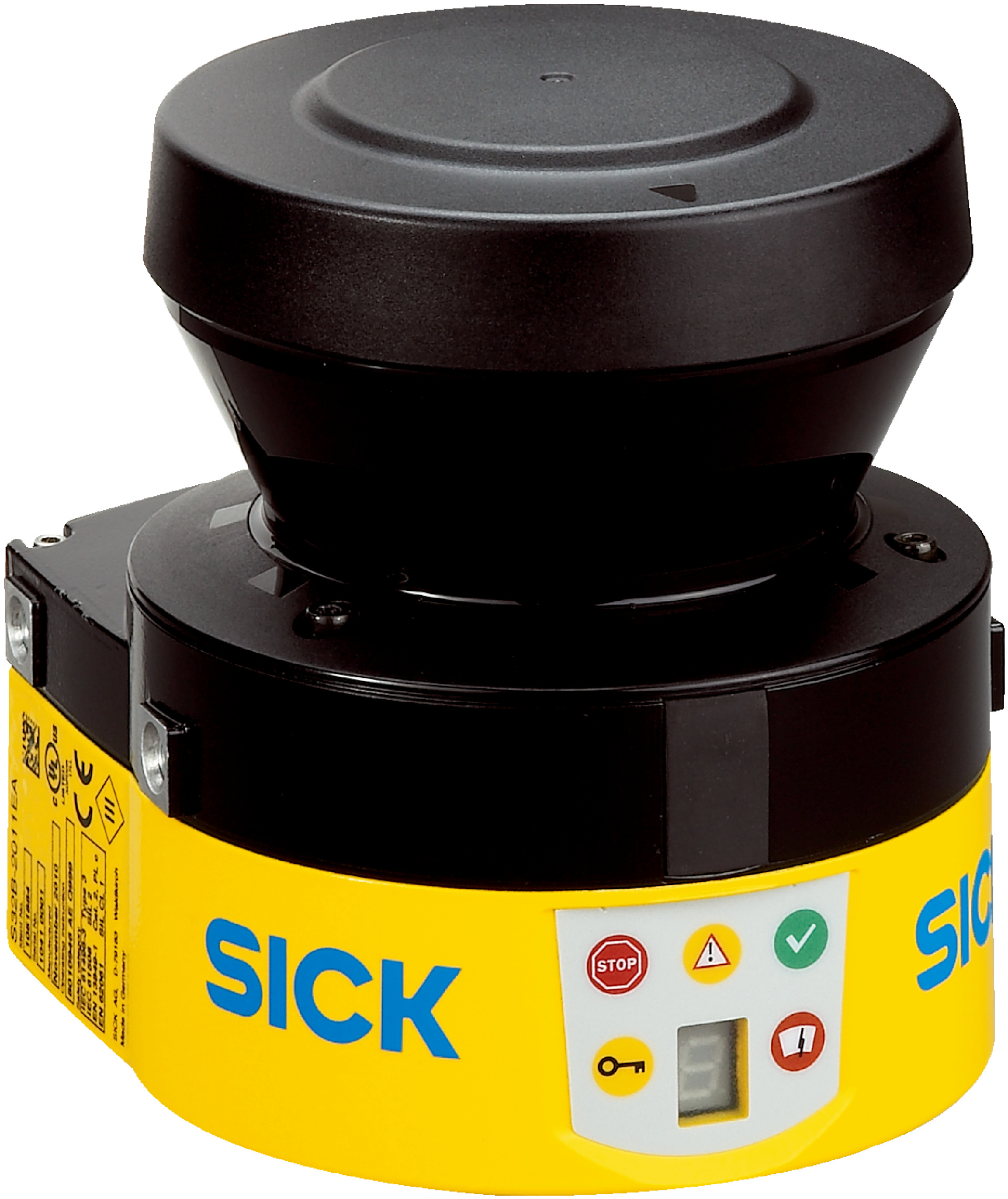

Safety Laser Scanner S32B-2011EA | 2m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner S32B-2011EA is designed for indoor safety monitoring in EFI system networks, featuring a protective field range of 2 m and a warning field range of 8 m. With a 270° scanning angle and configurable resolution options, it ensures optimal safety and performance. Built for professionals, this scanner meets Type 3 safety standards and offers a robust aluminum housing with an IP65 rating, making it ideal for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Laser Scanner S32B-2011EA | 2m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
Brand: SICK
SKU: 1051884
Alternatively Known As: Safety Laser Scanner S32B-2011EA, SICK Safety Scanner, S300 Mini Remote Laser Scanner
Technical Specifications
- Usage limited to EFI system network with Flexi Soft safety controller
- Protective field range: 2 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Triple field sets with 16 field sets and 48 fields
- Scanning angle: 270°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Multiple samplings: 2 to 16, configurable
- Delay of automatic reset: 2 s to 60 s, configurable
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Connection: Cable 250 mm with male M12 7-pin connector
- Configuration via PC with CDS software
- Communication interface: RS-232, transmission rate ≤ 500 kBaud
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.2 A to 0.22 A
- Protection class: III (EN 50178, EN 60950)
- Housing: Aluminum die cast, yellow and black color
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +50°C
- Vibration and shock resistance compliant with IEC standards
- Laser wavelength: 905 nm
- Laser class: 1
- Dimensions (H x L x W): 116mm x 105mm x 102mm
- Weight: 0.8 kg
Key Features
- Protective field range of 2 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m
- Triple field sets with 16 field sets and 48 fields
- 270° scanning angle with configurable resolution options (30 mm, 40 mm, 50 mm, 70 mm)
- Response time of 80 ms
- Configurable multiple samplings from 2 to 16
- Delay of automatic reset configurable from 2 s to 60 s
- Type 3 safety (IEC 61496) with SIL 2, Category 3, and Performance Level d
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range from -10°C to +50°C
- Pulsed laser diode with 905 nm wavelength and laser class 1
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with EFI systems and safety laser scanners to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring in EFI system networks
- Use with Flexi Soft safety controller and S300 or S3000 safety laser scanners
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of approximately 0.2 A reduces energy usage
- Durable housing and long mission time of 20 years reduce waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK S32B-2011EA Safety Laser Scanner is available for immediate purchase, ideal for indoor safety monitoring applications within EFI system networks.
