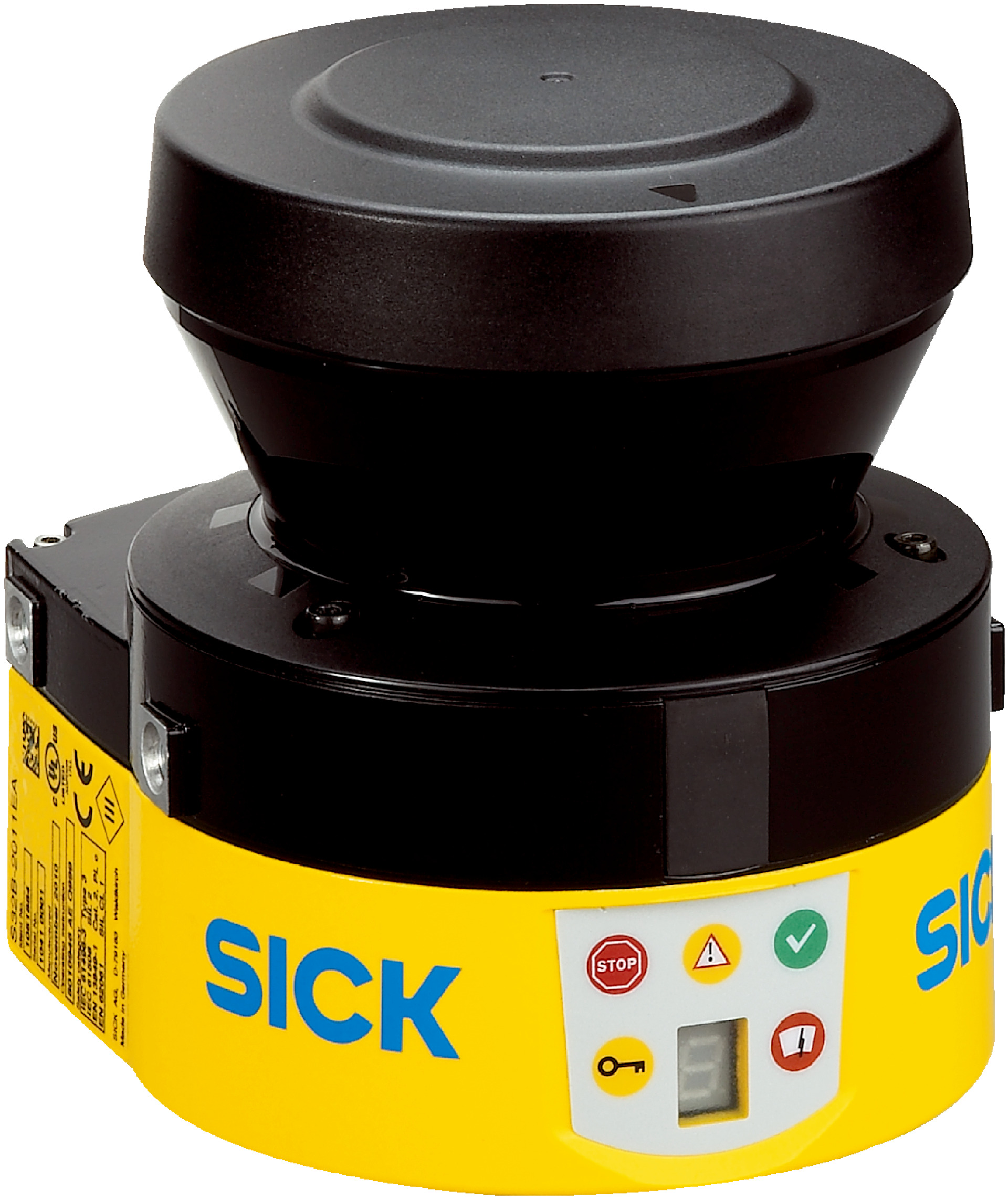

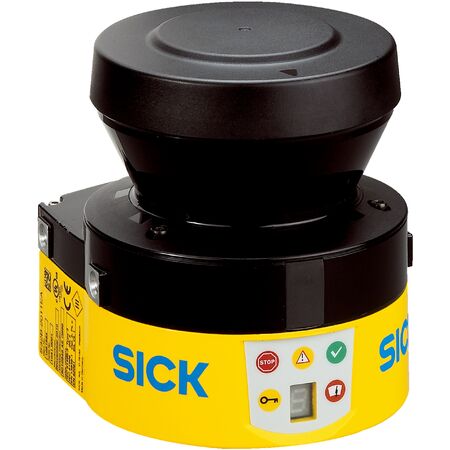

Safety Laser Scanner S32B-3011EA | 3m Protective Range | 270° Scanning Angle | IP65 Rated | by SICK
The Safety Laser Scanner S32B-3011EA is designed for indoor safety monitoring in industrial environments, featuring a protective field range of 3 m and a warning field range of 8 m. With a 270° scanning angle and configurable resolution options, it ensures precise detection and safety compliance. Ideal for integration with Flexi Soft safety controllers and S300/S3000 scanners, this robust scanner is built to enhance workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Laser Scanner S32B-3011EA | 3m Protective Range | 270° Scanning Angle | IP65 Rated | by SICK
Brand: SICK
SKU: 1056431
Alternatively Known As: Safety Laser Scanner S32B-3011EA, SICK Safety Scanner, S300 Mini Remote Laser Scanner
Technical Specifications
- Usage: EFI system network with Flexi Soft safety controller and S300/S3000 scanners
- Protective field range: 3 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Number of field sets: 16
- Number of fields: 48
- Scanning angle: 270°
- Resolution: configurable from 30 mm to 150 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.22 A to 0.24 A
- Protection class: III (EN 50178, EN 60950)
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +50°C
- Connection: Cable 250 mm with male M12 7-pin connector
- Configuration interface: RS-232, transmission rate ≤ 500 kBaud
- Laser class: 1 (IEC 60825-1)
- Wavelength: 905 nm
- Dimensions (H x L x W): 116mm x 105mm x 102mm
- Weight: 0.8 kg
Key Features
- Protective field range of 3 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m
- 270° scanning angle with triple field sets
- Configurable resolution options: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
- Response time of 80 ms
- Supports multiple sampling and monitoring case switching
- Static and dynamic protective field switching
- Safe SICK device communication via EFI
- IP65 rated enclosure for robust protection
- Laser class 1 pulsed laser diode with 905 nm wavelength
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with EFI system networks and safety laser scanner integration to ensure compliance with safety standards.
Applications
- Indoor safety monitoring in industrial environments
- Integration with Flexi Soft safety controllers
- Use with S300 or S3000 safety laser scanners in EFI system networks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 0.22-0.24 A reduces energy usage
- Durable aluminum die-cast housing and scratch-resistant optics cover extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK S32B-3011EA Safety Laser Scanner is available for immediate purchase, ideal for indoor industrial safety applications requiring reliable protective field monitoring.
