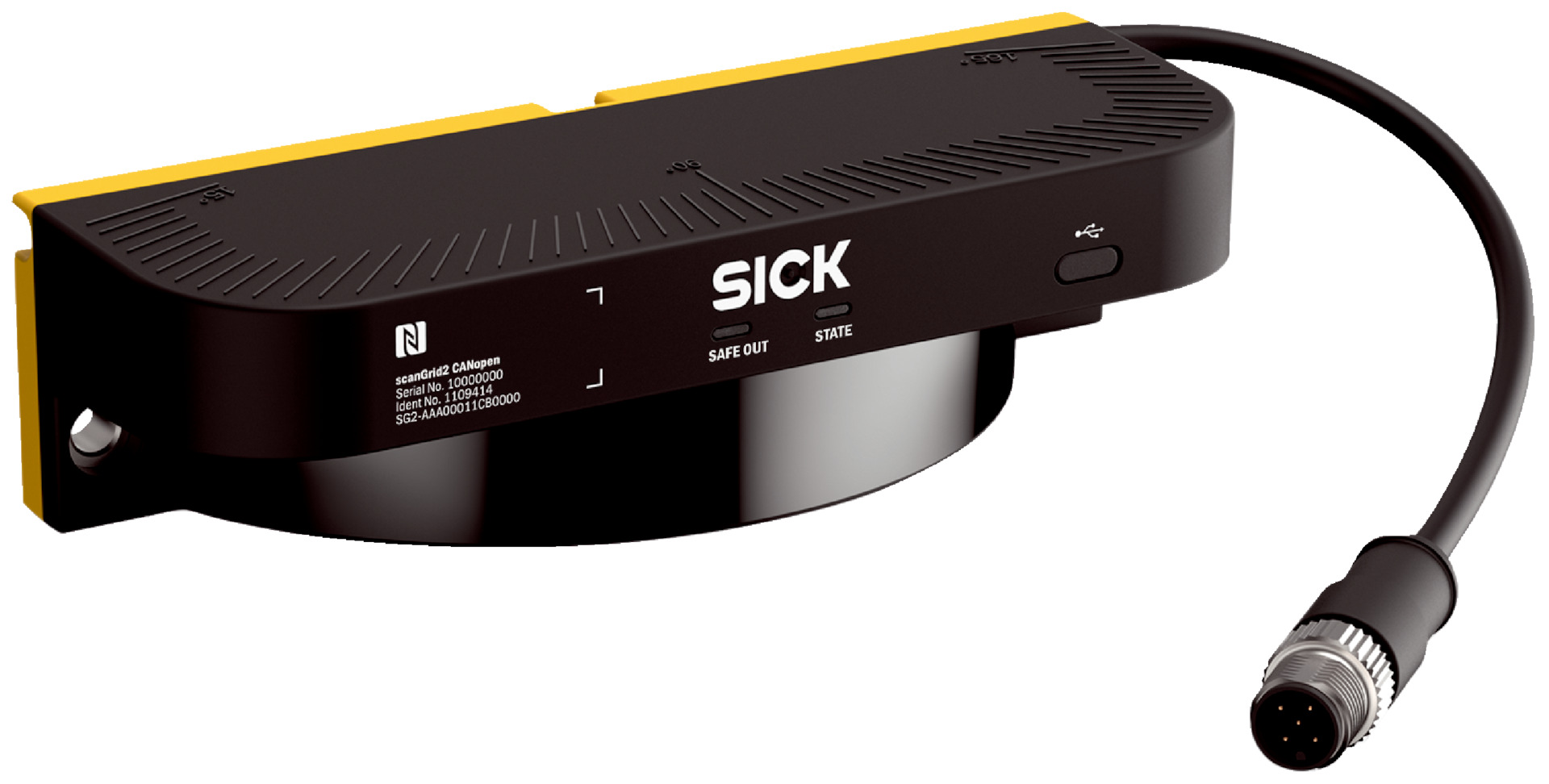

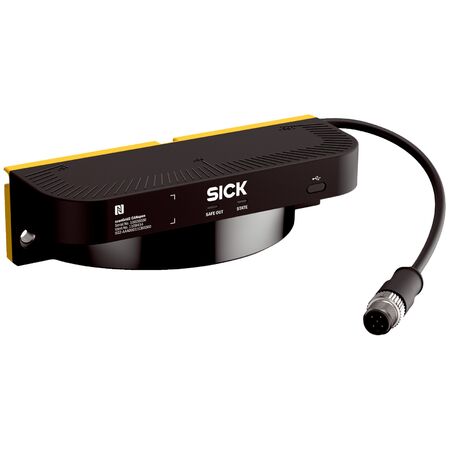

Safety Laser Scanner SG2-AAA00011CB0000 | 1.1m Protective Range | 4m Warning Range | IP65 Rated | by SICK
The Safety Laser Scanner SG2-AAA00011CB0000 offers a protective field range of 1.1 m and a warning field range of 4 m, making it ideal for industrial safety monitoring and machine safeguarding. Designed for reliable performance, it features simultaneous monitoring of up to 2 fields and a 150° scanning angle, ensuring comprehensive area protection in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 1.1 m at 70 mm resolution
- Warning field range: 4 m at 70 mm resolution and 80% remission
- Number of monitored fields: up to 2 simultaneously
- Number of fields: 16
- Number of monitoring cases: 8
- Scanning angle: 150°
- Configurable resolution: 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 6°
- Response time: ≥ 63 ms
- Safety type: Type 2 (IEC 61496-3)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- Power supply: 24 V DC (8.4 V to 30 V)
- Power consumption: ≤ 3 W
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Housing material: Durabio and polycarbonate
- Communication: CANopen Safety protocol
- Connection: Male M12, 5-pin, A-coded connector
- Laser type: Pulsed laser diode, 850 nm wavelength, Laser class 1
- Dimensions (H x L x W): 43mm x 56mm x 160mm
- Weight: 0.17 kg
Key Features
- Protective field range of 1.1 m at 70 mm resolution
- Warning field range of 4 m at 70 mm resolution and 80% remission
- Simultaneous monitoring of up to 2 fields
- 16 configurable fields and 8 monitoring cases
- 150° scanning angle with configurable resolution options (50 mm, 70 mm, 150 mm, 200 mm)
- Response time of at least 63 ms
- Type 2 safety device compliant with IEC 61496-3
- Safety integrity level SIL 1 and Performance level PL c
- Integrated configuration memory and multiple sampling
- CANopen Safety communication protocol with diagnostic capabilities
- IP65 rated enclosure for dust and water protection
- Operating temperature range from 0 °C to +50 °C
- Durable housing with black and yellow polycarbonate materials
- Pulsed laser diode with 850 nm wavelength and laser class 1
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety standards and CANopen Safety protocols to ensure compliance and optimal operation.
Applications
- Industrial safety monitoring
- Machine safeguarding
- Area protection in manufacturing environments
- Automated guided vehicle (AGV) safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 3 W
- Durable design reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SG2-AAA00011CB0000 Safety Laser Scanner is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
