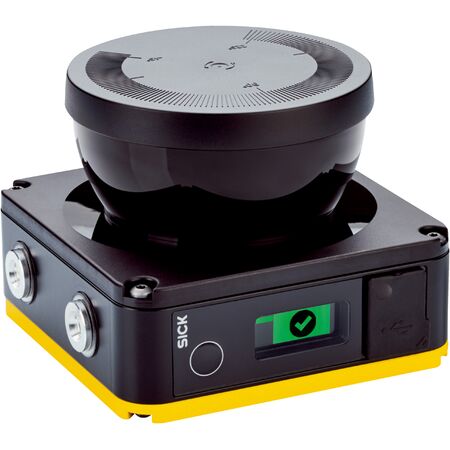

Safety Laser Scanner SICK nanoScan3 | 3m Protective Range | 10m Warning Range | SIL 2 Safety Level | by SICK
The Safety Laser Scanner SICK nanoScan3 is designed for indoor safety monitoring and industrial automation, featuring a protective field range of 3m and a warning field range of 10m. With a wide scanning angle of 275° and the ability to monitor up to 8 fields simultaneously, it ensures robust safety measures in manufacturing environments. Built with an IP65 rated aluminum housing, this scanner operates efficiently in temperatures from -10°C to +50°C, making it ideal for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 3 m
- Warning field range: 10 m
- Distance measuring range: 40 m
- Scanning angle: 275°
- Resolution configurable from 20 mm to 200 mm
- Angular resolution: 0.17°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 3.9 W typical
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Housing material: Aluminum
- Optics cover material: Polycarbonate
- Laser wavelength: 905 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 80mm x 118mm x 107mm
- Weight: 0.67 kg
Key Features
- Protective field range of 3 m and warning field range of 10 m
- Distance measuring range up to 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution options
- Safety integrity level SIL 2 and Category 3 safety rating
- Multiple safety functions including restart interlock, external device monitoring, and safe contour detection
- Graphic color display with LEDs for status indication
- Robust IP65 rated aluminum housing with polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Pulsed laser diode with 905 nm wavelength and laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety laser scanners and industrial safety standards.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding
- Area protection in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 3.9 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK NANS3-CAAZ30AN1 nanoScan3 Pro I/O safety laser scanner is available for immediate purchase, ideal for indoor industrial safety and automation applications.
