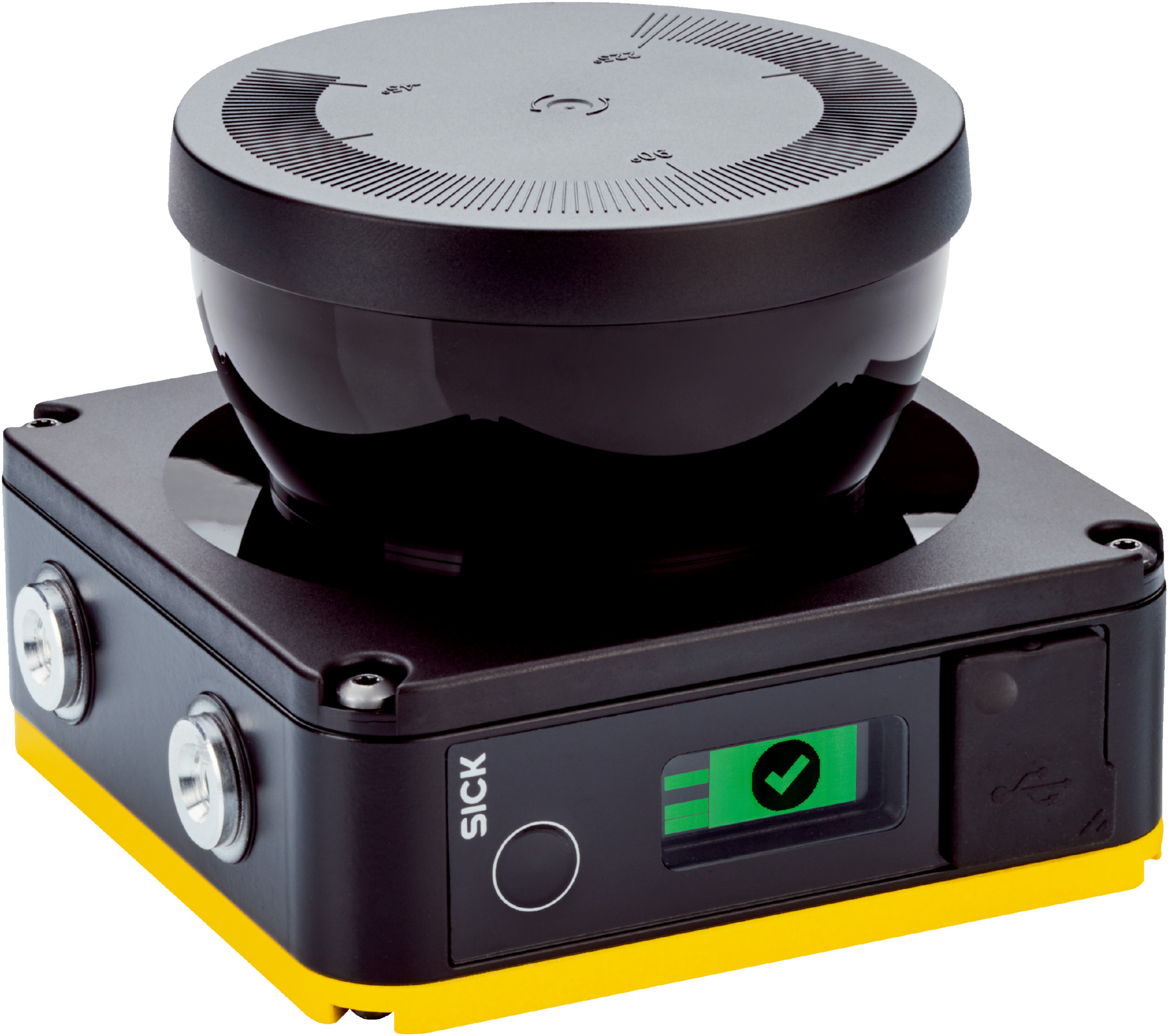

Safety Laser Scanner SICK nanoScan3 | 3m Protective Range | 10m Warning Range | SIL 2 Safety Level | by SICK
The Safety Laser Scanner SICK nanoScan3 is designed for indoor safety monitoring and industrial automation, featuring a protective field range of 3 m and a warning field range of 10 m. With a wide scanning angle of 275° and the ability to monitor up to 8 fields simultaneously, it ensures optimal safety in manufacturing environments. Built for reliability, it operates efficiently with a low power consumption of 5.5 W and is housed in a robust IP65-rated aluminum casing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 3 m
- Warning field range: 10 m
- Distance measuring range: 40 m
- Scanning angle: 275°
- Configurable resolution: 20 mm to 200 mm
- Response time: 85 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 5.5 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Communication interfaces: Ethernet, USB 2.0 micro USB
- Fieldbus: EFI-pro
- Display: Graphic color display with LEDs
- Laser type: Pulsed laser diode, wavelength 905 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 80mm x 118mm x 107mm
- Weight: 0.67 kg
Key Features
- Protective field range of 3 m and warning field range of 10 m
- Distance measuring range up to 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution from 20 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple safety functions including restart interlock, external device monitoring, and safe contour detection
- Communication via Ethernet with EFI-pro protocol and USB 2.0 micro USB configuration interface
- Robust IP65 rated aluminum housing with polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Graphic color display and LED indicators for status
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety laser scanners and industrial safety standards to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding
- Area protection in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 5.5 W
- Durable aluminum housing and long service life reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

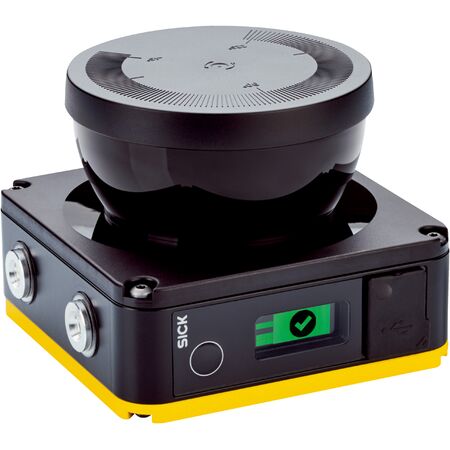

The SICK nanoScan3 Pro I/O EFI-pro Safety Laser Scanner NANS3-CAAZ30AA1 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
