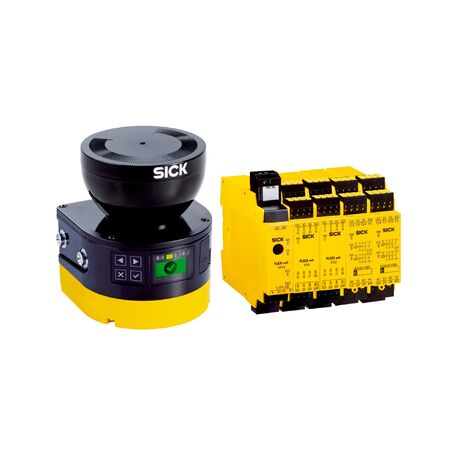

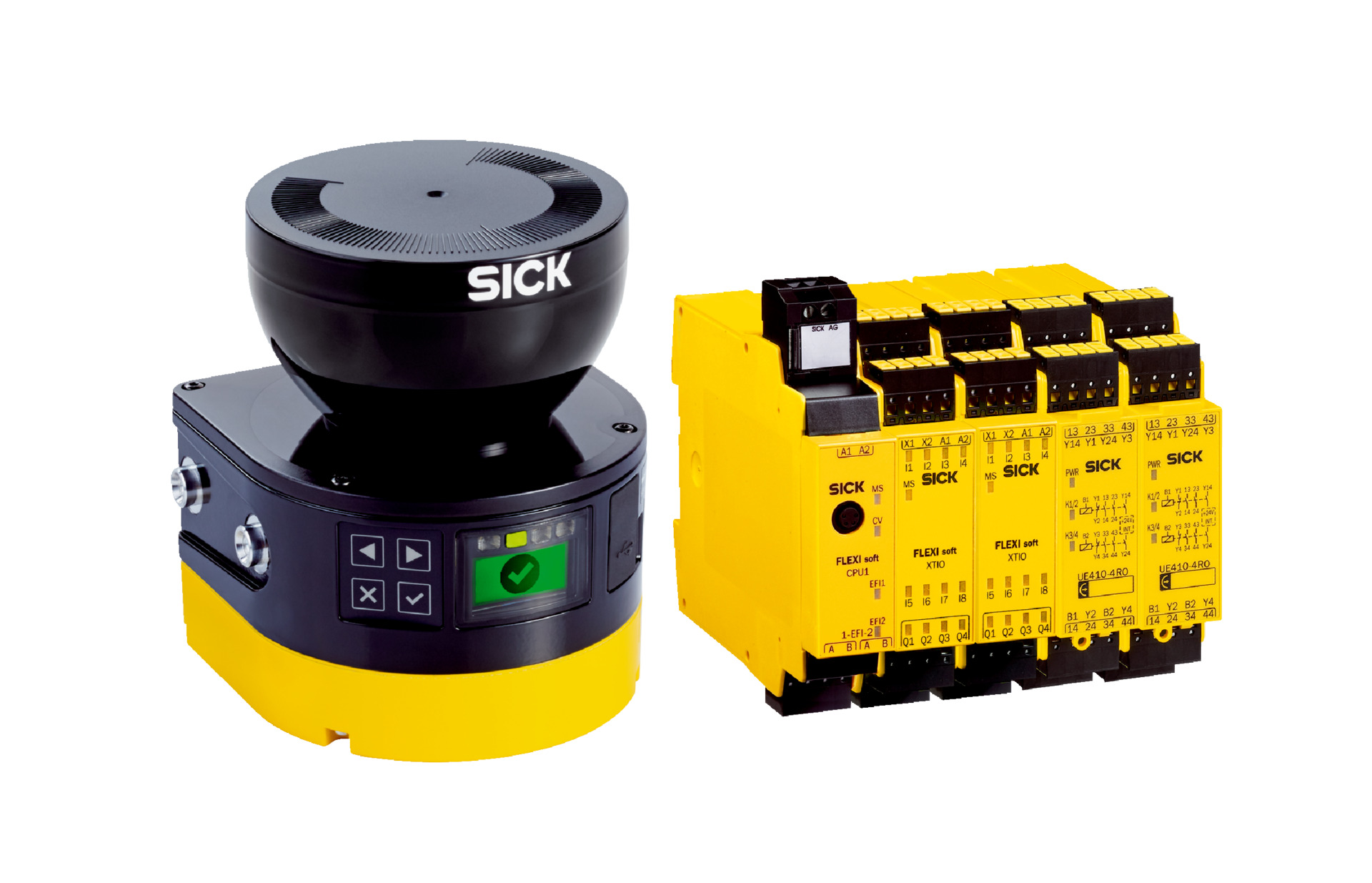

Safety Laser Scanner System | 5.5 m Protective Field Range | Programmable Flexi Soft Controller | Automatic Robot Restart | by SICK
The Safety Laser Scanner System is designed for industrial automation, featuring a 5.5 m protective field range and a programmable Flexi Soft safety controller. Ideal for hazardous area protection and robot safety control, it ensures safe operation with automatic restart and speed reduction during emergencies, making it perfect for enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Variant: sBot Speed
- Product type: Hardware
- Robot controller compatibility: Generic
- Stopping process: With speed reduction
- Robot restart: Automatic
- Communication interface: Discrete I/Os
- Safe state on fault: Semiconductor outputs OFF
- Protective field range: 5.5 m
- Safety controller: Flexi Soft (CPU1), programmable
- Supply voltage: 24 V DC (16.8 V DC to 28.8 V DC)
- Performance level: PL d (ISO 13849-1)
- Ambient operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +50 °C
- Air humidity: 90% at 50 °C (EN 61131-2)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2 kg
Key Features
- Safety laser scanner microScan3 Core I/O with 5.5 m protective field range
- Programmable safety controller Flexi Soft (CPU1) included
- Automatic robot restart with speed reduction stopping process
- Discrete I/Os communication interface
- Safety-related semiconductor outputs turn OFF in fault conditions
- Emergency stop with automated reset and prevention of unexpected restarting
- Safety-rated monitored speed with trigger and switch field sets
- Operating temperature range from –10 °C to +50 °C
- Storage temperature range from –20 °C to +50 °C
- High air humidity tolerance up to 90% at 50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system professionals or certified electricians to ensure compliance with safety standards and optimal system performance.
Applications
- Hazardous area protection in industrial automation
- Robot safety control with speed reduction
- Emergency stop and safety-rated monitored speed applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports safe automation reducing risk of accidents and downtime
- Energy-efficient operation with programmable safety controls
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK sBot Speed Safety Laser Scanner System is available for immediate purchase, ideal for industrial automation and robot safety applications.
