Safety Laser Scanner System | Safe AGV Easy 5 | 128 Configurable Fields | 3m Protective Range | by SICK
The Safety Laser Scanner System is designed for Automated Guided Vehicles (AGVs), featuring the Safe AGV Easy 5 variant with 128 configurable fields for precise safety zones. With a protective field range of 3 meters and a warning field range of 10 meters, it ensures optimal safety in industrial automation and robotics applications. Built for professionals, this system supports quick cornering and docking processes, enhancing operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Variant: Safe AGV Easy 5
- Number of fields: 128
- Protective field range: 3 m
- Warning field range: 10 m
- safeHDDM® technology enabled
- Number of directions of travel: 2
- Switchable protective fields supported
- Quick cornering and docking process enabled

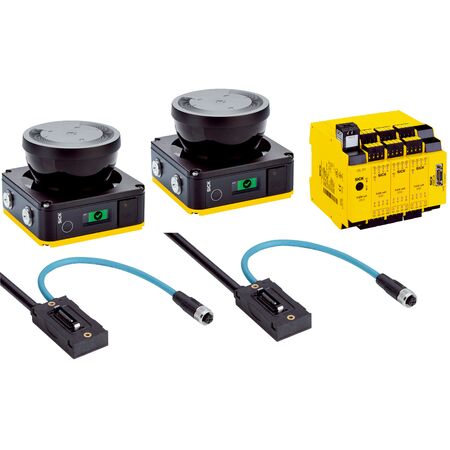

- Items supplied: 2 × nanoScan3 Pro I/O safety laser scanners, 2 × system plugs for nanoScan3 Pro I/O Flexi Soft safety controller, 1 × CPU0 main module, 1 × system plug for CPU0, 3 × XTIO expansion modules, 1 × MOC0 motion control monitor extension module
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 5 kg
Key Features
- Safety system with 2 nanoScan3 Pro I/O safety laser scanners
- 128 configurable fields for precise safety zones
- Protective field range of 3 meters
- Warning field range of 10 meters
- Supports safeHDDM® technology for enhanced safety
- Operates with 2 directions of travel
- Switchable protective fields for flexible safety configurations
- Quick cornering and docking process support
Professional Installation Requirements
- Installation must be performed by qualified professionals experienced in safety laser scanner systems and compliant with occupational health and safety standards.
Applications
- Automated Guided Vehicles (AGVs) safety systems
- Industrial automation safety monitoring
- Warehouse and factory floor safety
- Robotics and material handling safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accident-related environmental impacts
- Supports efficient automated vehicle operation reducing energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK SYS/SAE-FX000020302NS3 Safe AGV Easy 5 safety laser scanner system is available for immediate purchase, ideal for industrial automation and AGV safety applications.
