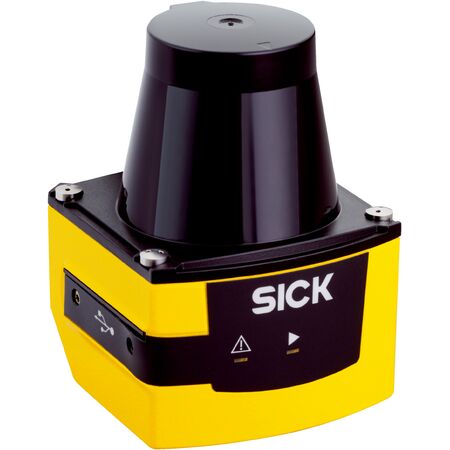

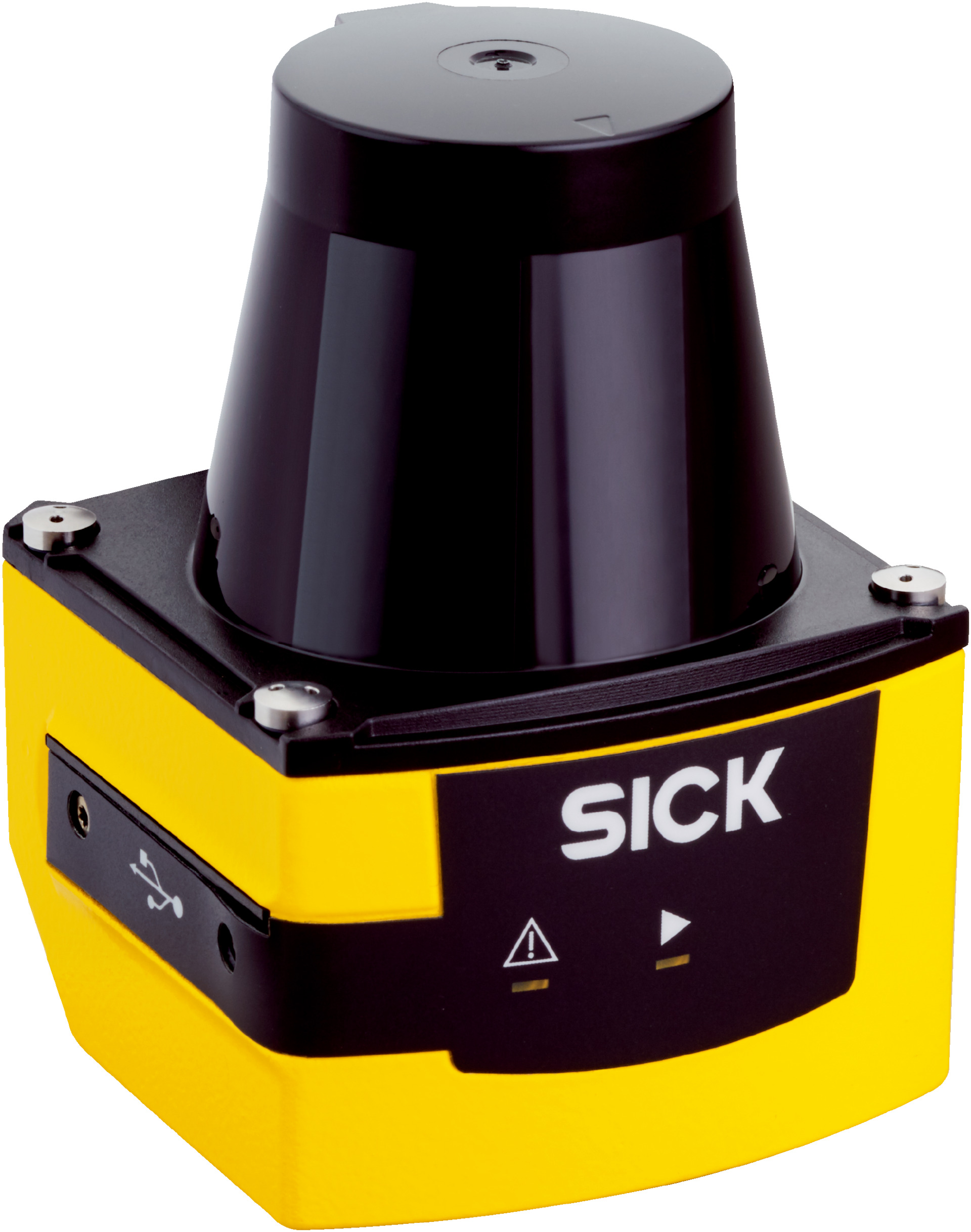

Safety Laser Scanner TIM361S-2134101 | HDDM Measurement | IP67 Rated | 270° Aperture Angle | by SICK
The Safety Laser Scanner TIM361S-2134101 features advanced HDDM measurement technology and an infrared light source, making it ideal for indoor hazardous area protection. With a robust IP67 rating and a wide working range of 0.05 m to 10 m, this sensor is perfect for automated guided vehicles and mobile platforms, ensuring safety in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 0.33°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 10 m (> 90% remission)
- Safety-related working range: 0.05 m to 4 m (at 5% remission)
- Blind zone: 0 m to 0.05 m
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with max loaded digital outputs
- Output current: ≤ 100 mA
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Response time: ≤ 134 ms for 1 or 2 scans
- Number of field sets: 16 field triples (48 protective fields)
- Digital inputs: 4 PNP for field set switching
- Digital outputs: 3 PNP for detection display plus 1 Device Ready
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Vibration resistance: 10 Hz to 1,000 Hz sine resonance scan
- Shock resistance: up to 50 g, 11 ms single shocks
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- HDDM measurement principle with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- 270° horizontal aperture angle with 0.33° angular resolution
- Scanning frequency of 15 Hz with a working range of 0.05 m to 10 m
- IP67 rated enclosure for robust protection
- Multiple connection options including Ethernet, power, and Micro USB
- Safety category B with Performance Level PL b
- Flexible protective field evaluation with up to 48 protective fields
- Configurable delay and dwell times
- High vibration and shock resistance
- Wide ambient operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Indoor hazardous area protection
- Hazardous point and access protection
- Mobile hazardous area protection for automated guided vehicles and mobile platforms
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of typically 4 W reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Long MTBF of over 100 years minimizes replacement frequency
Warranty Information
Warranty details available upon request from manufacturer SICK.
Available Now
The SICK TIM361S-2134101 Indoor Safety Sensor is available for immediate purchase, ideal for industrial safety and automated guided vehicle applications.
