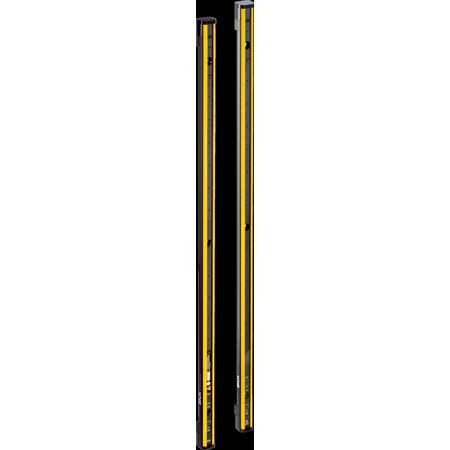

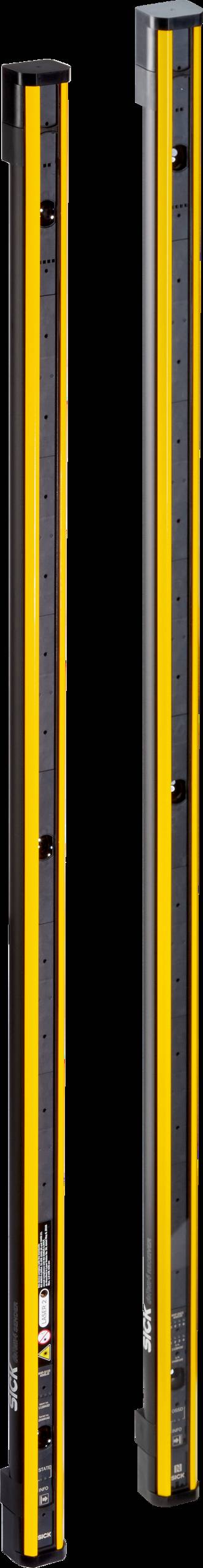

Safety Light Beam Sensor deTem | 90m Scanning Range | PL e, SIL 3 Safety Level | by SICK
The deTem Safety Light Beam Sensor is designed for access protection and human-material differentiation in industrial automation. With a large scanning range of up to 90 meters and integrated alignment aids, it ensures reliable safety monitoring in manufacturing and logistics. Ideal for automated material flows, this sensor features remote diagnostics via IO-Link and NFC, making it a smart choice for safety professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Beam Sensor deTem | 90m Scanning Range | PL e, SIL 3 Safety Level | by SICK
Brand: SICK
SKU: 1128436
Alternatively Known As: Safety light beam sensor, Access protection sensor, Human-material differentiation sensor, Industrial safety sensor
Technical Specifications
- Protective operation, beam coding, restart interlock, external device monitoring (EDM)
- Differentiation between person and material
- Visual display on device, Application diagnostic output (ADO)
- Smartphone app via NFC (SICK Safety Assistant)
- PC software via IO-Link (SOPAS) and DMM4 (Safety Designer)
- Laser alignment aid included
- Safety level: PL e, SIL 3, Type 4
- Number of beams: 3
- Beam separation: 400 mm
- Scanning range: 90 m
- Housing material: Aluminum extruded profile
- Connection type: Plug, M12, 5-pin, male connector M12, 8-pin
- Ambient operating temperature: -30 °C to 55 °C
- Enclosure rating: IP65, IP67
- Functional principle: Sender/receiver
- System part: pair
- Type of human-material differentiation: Simple 2-signal muting, Flexible 2- or 4-signal muting
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 1.5 kg
Key Features
- Large scanning range up to 90 m in a compact housing
- Integrated alignment aids with status LEDs and alignment laser visible up to 90 m
- Remote and on-site diagnosis via IO-Link and NFC
- Flexible 2- and 4-signal muting options
- Core variants available for cost-efficient protection
- Standardized connection, operating, and accessories concept
Professional Installation Requirements
- Installation should be performed by qualified safety system professionals to ensure compliance with safety standards and proper integration into automated systems.
Applications
- Access protection in automated material flows
- Human-material differentiation in industrial automation
- Safety monitoring in manufacturing and logistics
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Digital diagnostics reduce downtime and maintenance visits, lowering resource consumption
- Efficient safety monitoring helps prevent accidents and equipment damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK deTem Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automated material flow applications.
