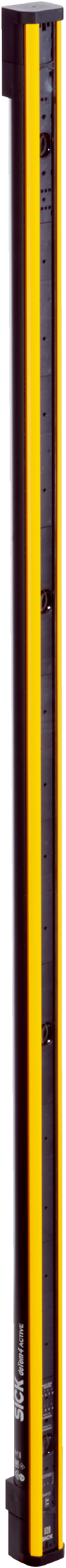

Safety Light Beam Sensor deTem4 A/P | 4 Beams & 300 mm Beam Separation | Type 4 Safety | by SICK
The deTem4 A/P Safety Light Beam Sensor is designed for industrial safety monitoring, featuring an active/passive functional principle with 4 beams and a scanning range of 0.5 m to 7 m. With Type 4 safety compliance and SIL 3 integrity, it ensures reliable machine safeguarding and access protection, making it ideal for automation safety systems in various industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTem4 A/P Safety Light Beam Sensor, SICK Active Unit Safety Sensor, Industrial Safety Light Curtain
Technical Specifications
- Product version: deTem4 A/P
- Functional principle: Active/passive
- Scanning range: 0.5 m to 7 m
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 20 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 6.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 4 W typical
- Output devices: 2 PNP semiconductors, short-circuit protected
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Housing: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Dimensions (H x L x W): 34mm x 100mm x 30.7mm
- Weight: 0.875 kg
Key Features
- Active/passive functional principle with 4 beams and 300 mm beam separation
- Scanning range from 0.5 m to 7 m
- Type 4 safety (IEC 61496-1) with SIL 3 (IEC 61508) and Category 4 (ISO 13849-1) compliance
- Performance level PL e (ISO 13849-1) with mean probability of dangerous failure per hour (PFHD) of 6.6 x 10^-9
- Multiple function packages including muting, beam coding, restart interlock, and external device monitoring
- System connection via M12 male connector (5-pin or 8-pin) with DIP switch configuration
- LED diagnostic indicators and alignment aid
- Protection class III (IEC 61140) with 24 V DC supply voltage
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Housing made of aluminum extruded profile with polycarbonate scratch-resistant front screen
- IP65 and IP67 rated enclosure for robust environmental protection
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment safety monitoring
- Machine safeguarding and access protection
- Industrial automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption (4 W typical) supports energy efficiency
- Long mission time of 20 years reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

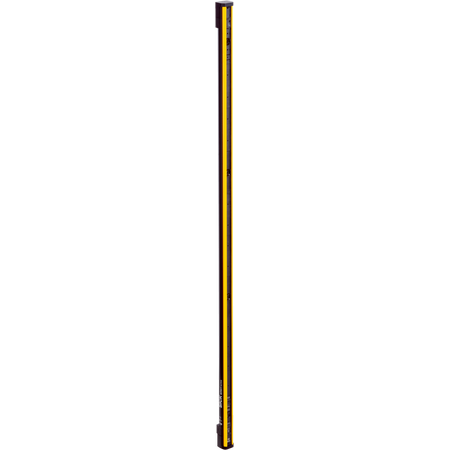

The SICK M4P-ZA04300C00 deTem4 A/P safety light-beam sensor is available for immediate purchase, ideal for industrial safety and automation applications.
