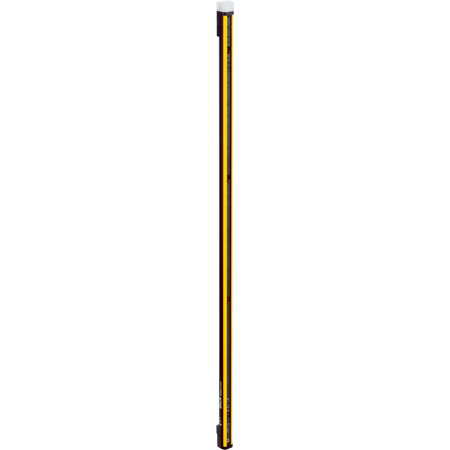

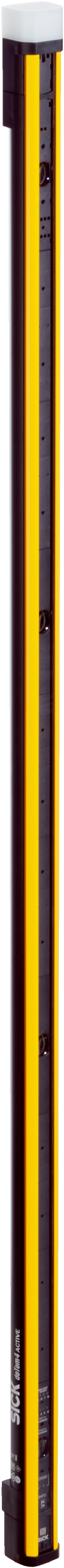

Safety Light Beam Sensor deTem4 A/P | 4 Beams & 7m Scanning Range | SIL 3 & IP65/IP67 Rated | by SICK
The deTem4 A/P Safety Light Beam Sensor is designed for industrial safety monitoring, featuring a scanning range of 0.5 m to 7 m with 4 beams for enhanced detection. With SIL 3 compliance and an IP65/IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for machine safeguarding and access control, this sensor integrates advanced features like beam coding and diagnostic outputs for optimal safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTem4 A/P Safety Light Beam Sensor, Active Unit Safety Sensor, Industrial Safety Light Curtain
Technical Specifications
- Product version: deTem4 A/P
- Scanning range: 0.5 m to 7 m
- Number of beams: 4 with 300 mm beam separation
- Response time: 20 ms
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 6.6 x 10^-9
- Mission time: 20 years
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 4 W
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Housing: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Dimensions (H x L x W): 34mm x 150mm x 30.7mm
- Weight: 0.89 kg
Key Features
- Active/passive functional principle with 4 beams and 7 m scanning range
- Type 4 safety (IEC 61496-1) with SIL 3 and Category 4 (ISO 13849-1) compliance
- Beam coding, restart interlock, and muting functions with multiple signal options
- Integrated LEDs for alignment aid and diagnostic output
- IO-Link and Near Field Communication (NFC) enabled
- Robust aluminum extruded profile housing with polycarbonate scratch-resistant front screen
- Protection class III and power consumption of 4 W DC
- IP65 and IP67 rated enclosure for harsh environments
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Normal industrial environment safety monitoring
- Machine safeguarding and access control
- Industrial automation requiring active/passive light beam sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 4 W reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M4P-ZA04300D00 deTem4 A/P safety light-beam sensor is available for immediate purchase, ideal for industrial safety and automation applications.
