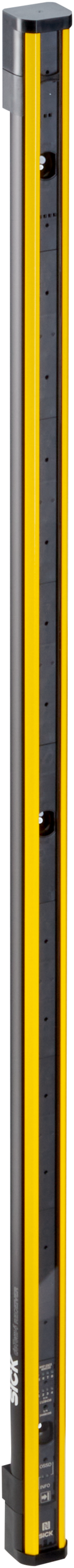

Safety Light Beam Sensor Receiver | Type 4 with SIL 3 & PL e Ratings | 90 m Scanning Range | Optical Synchronization | by SICK
The Safety Light Beam Sensor Receiver is designed for industrial safety monitoring, featuring a 90 m scanning range with 3 beams and 400 mm beam separation. With Type 4 safety ratings, SIL 3, and PL e, it ensures high safety integrity for machine safeguarding and perimeter protection. Ideal for normal industrial environments, this sensor supports IO-Link and NFC for easy configuration and diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTem4 Safety Light Beam Sensor Receiver, SICK Safety Light Curtain Receiver, Industrial Safety Sensor Receiver
Technical Specifications
- Product version: deTem4
- Application: Normal industrial environment
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: 90 m
- Number of beams: 3
- Beam separation: 400 mm
- Response time: 20 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496)
- Safety integrity level: SIL 3 (IEC 61508, IEC 62061)
- Category: Category 4 (ISO 13849)
- Performance level: PL e (ISO 13849)
- PFHD: 6.6 × 10^-9
- Mission time: 20 years (ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin or none
- Configuration: DIP switch or PC software via DMM4
- Display: Status LEDs and diagnostic LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Output devices: 2 PNP semiconductors, short-circuit protected
- Output voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- Output voltage LOW: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Application diagnostic output: PNP semiconductor, short-circuit protected
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Material: Aluminum extruded profile housing, polycarbonate front screen with scratch-resistant coating
- Dimensions (H x L x W): 34mm x 100mm x 30.7mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light-beam sensor receiver with SIL 3 and PL e safety ratings
- 90 m scanning range with 3 beams and 400 mm beam separation
- Optical synchronization with 20 ms response time
- Multiple function packages including protective operation, muting, and diagnostic outputs
- Status and diagnostic LEDs with alignment aid
- IP65 and IP67 rated enclosure for harsh environments
- Supports IO-Link and Near Field Communication (NFC) for configuration and diagnostics
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial safety systems and electrical standards.
Applications
- Industrial safety monitoring in normal industrial environments
- Machine safeguarding and perimeter protection
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- Supports safe machine operation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK M4P-EA03400C00 deTem4 Safety Light-Beam Sensor Receiver is available for immediate purchase. Ideal for industrial safety and machine safeguarding applications.
