Safety Light-Beam Sensor Receiver | Type 4 Safety | SIL 3 & PL e Rated | Configurable Scanning Range | by SICK
The Safety Light-Beam Sensor Receiver is designed for industrial safety monitoring, featuring a Type 4 safety rating with SIL 3 and PL e compliance. With a configurable scanning range from 0.5 m to 70 m and a fast response time of 10 ms, it ensures reliable operation in machine guarding and access control applications. Built for durability, this sensor is perfect for automation systems requiring high safety integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

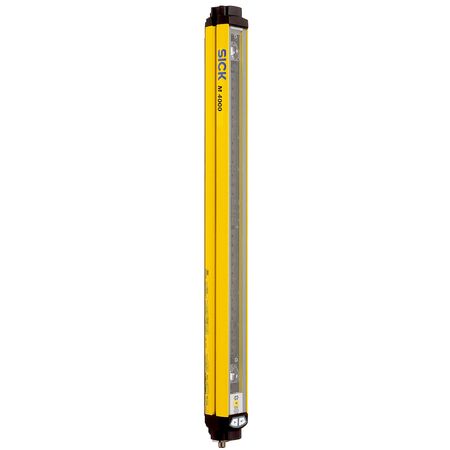

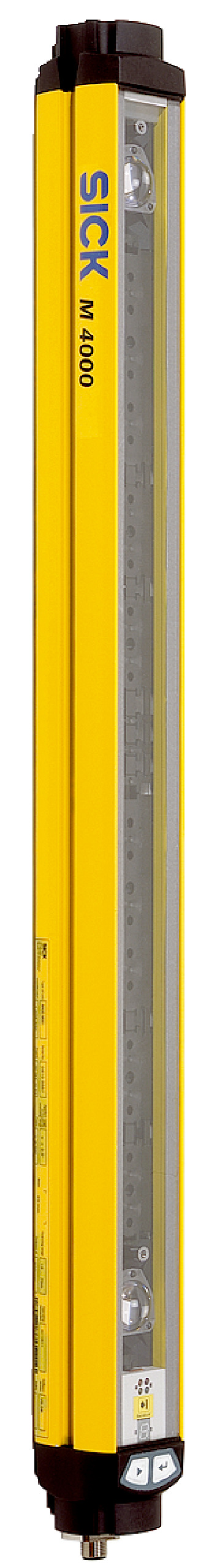

Product Name/Title: Safety Light-Beam Sensor Receiver | Type 4 Safety | SIL 3 & PL e Rated | Configurable Scanning Range | by SICK
Brand: SICK
SKU: 1200018
Alternatively Known As: Safety light beam sensor receiver, Safety light curtain receiver, Industrial safety sensor, M40E sensor receiver
Technical Specifications
- Functional principle: Sender/receiver
- Scanning range: 0.5 m to 70 m configurable
- Number of beams: 2
- Beam separation: 600 mm
- Response time: 10 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Output devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Housing material: Powder coated aluminum alloy ALMGSI 0.5
- Front screen: Polycarbonate with scratch-resistant coating
- Wavelength: 850 nm
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light-beam sensor receiver with SIL 3 and PL e rating
- Configurable scanning range from 0.5 m to 70 m
- Dual beam with 600 mm beam separation
- Optical synchronization and beam coding for reliable operation
- Fast response time of 10 ms
- LED and 7-segment display for status indication
- Short-circuit protected PNP output signal switching devices (OSSDs)
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics
- Durable powder-coated aluminum housing extends product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK M40E-026000RR0 Safety Light-Beam Sensor Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
