Safety Light Curtain 1350mm | 16 Beams | 14mm Spacing | IP65 by NHP
Safety light curtain with 1350mm height and 16 beams at 14mm spacing—ideal for industrial machine guarding. Built for enhanced safety, with IP65 protection and durable metal housing.
Sign in
Please login to continue to your account.

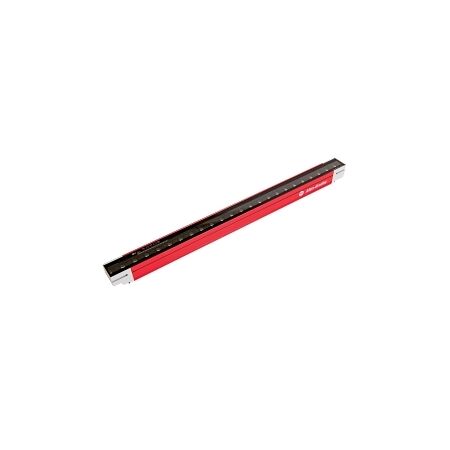

Product Name/Title: AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 1350mm Resolution 14mm
Brand: NHP
SKU: 450LB4FN1350YD
Alternatively Known As: Light Curtain Safety Device, POC Light Curtain, Safety Light Barrier
- Voltage Type: DC
- Supply Voltage: 24 V
- Type of Safety according to IEC 61496-1: 4
- Material Housing: Metal
- Degree of Protection: IP65
- Number of Beams: 16
- Beam Spacing: 14 mm
- Wavelength of the Sensor: 850 nm
- Height Protected: 1350 mm
- Ambient Temperature: -10-55 °C
- Dimensions (H x L x W): 1350mm x 100mm x 30mm
- Weight: 2.5 kg
- 16 beams with 14 mm beam spacing for enhanced safety coverage.
- IP65 rated for protection against dust and water.
- Professional installation by a qualified technician is recommended for optimal safety and performance.
- Industrial: Manufacturing and assembly lines
- Safety: Machine guarding and personnel protection
- Complies with AS/NZS 4801 for Occupational Health & Safety Management Systems.
- Durable metal housing reduces waste and extends product life.
1 year warranty against manufacturing defects.
The AB 450L GuardShield POC Light Curtain is available now for immediate purchase. Ideal for industrial applications requiring safety and protection.
