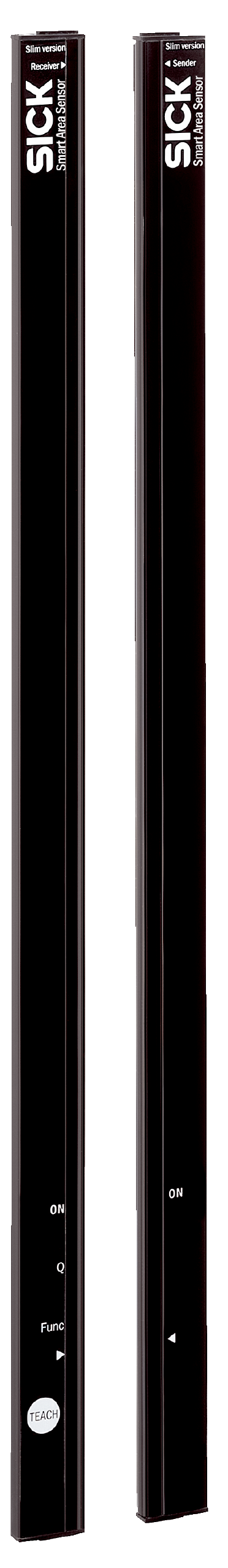

Safety Light Curtain SGS4-S060P3PS2T00 | 16 Infrared Beams | IP65 Rated | 600mm Detection Height | by SICK
The Safety Light Curtain SGS4-S060P3PS2T00 features 16 parallel infrared beams with a 600mm detection height, making it ideal for industrial safety and automation applications. With a minimum detectable object size of 45mm and an IP65 rated enclosure, it ensures reliable performance in harsh environments. Designed for machine safeguarding and presence sensing, this light grid sensor is perfect for enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain, Light Grid Sensor, Machine Safety Sensor, Industrial Safety Curtain
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 16
- Detection height: 600 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Response time: 19 ms
- Operating range: 3 m
- Enclosure rating: IP65
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Weight: 80 g
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 672mm x 12mm x 37mm
- Weight: 0.1 kg
Key Features
- 16 parallel infrared light beams with 600 mm detection height
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Teach-in button for easy parameterization
- PNP switching output with output current up to 100 mA
- IP65 rated enclosure for dust and water protection
- LED display for status indication
- Reverse polarity and short-circuit protected outputs
- Shock resistance up to 10 g and vibration resistance up to 5 g
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and electrical safety standards to ensure proper alignment and compliance with safety regulations.
Applications
- Industrial safety light curtain for machine safeguarding
- Automation systems requiring object detection and presence sensing
- Safety perimeter monitoring in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces need for frequent replacements
- Robust design minimizes electronic waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

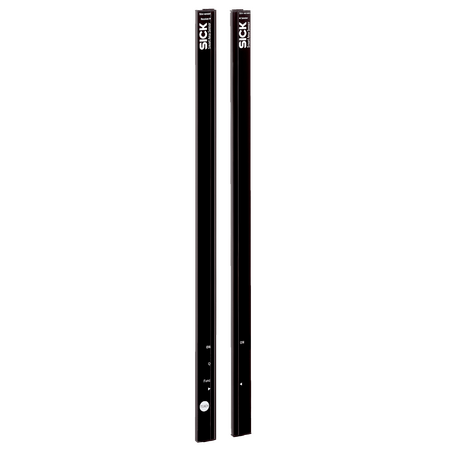

The SICK SGS4-S060P3PS2T00 LIGHTGRID is available for immediate purchase, ideal for industrial safety and automation applications.
