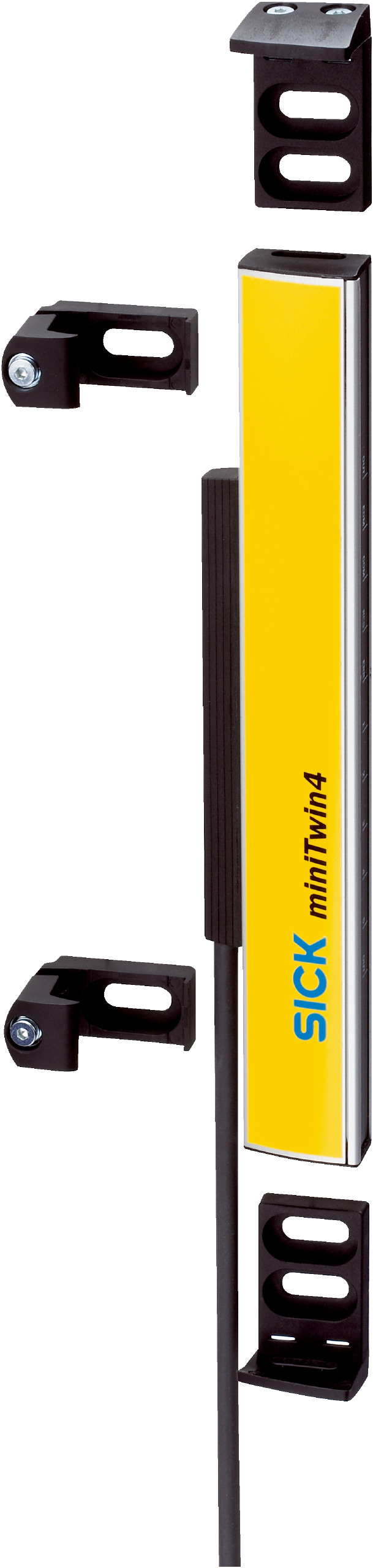

Type 4 Safety Light Curtain | 24 mm Resolution | 0-5 m Scanning Range | IP65 Rated | by SICK
The Type 4 Safety Light Curtain is designed for industrial safety, featuring a 24 mm resolution and a scanning range of up to 5 m. Ideal for protecting personnel in hazardous areas, this curtain ensures quick response times of ≤ 13 ms and optical synchronization without separate components. Built with an aluminum housing and IP65 rating, it’s perfect for manufacturing and processing plants, providing reliable safety in automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 120 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- System connection: Male connector M12, 5-pin
- Cable length: 160 mm
- Conductor cross section: 0.34 mm²
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 50 g
- Enclosure rating: IP65
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 32mm x 160mm x 15mm
- Weight: 0.1 kg
Key Features
- Type 4 safety light curtain with 24 mm resolution
- Scanning range from 0 m to 5 m typical
- Protective field height of 120 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signal switching devices
- Housing made of aluminum alloy ALMGSI 0.5
- IP65 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption with efficient electronics
- Long service life reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C4MT-01224ABB03BE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
