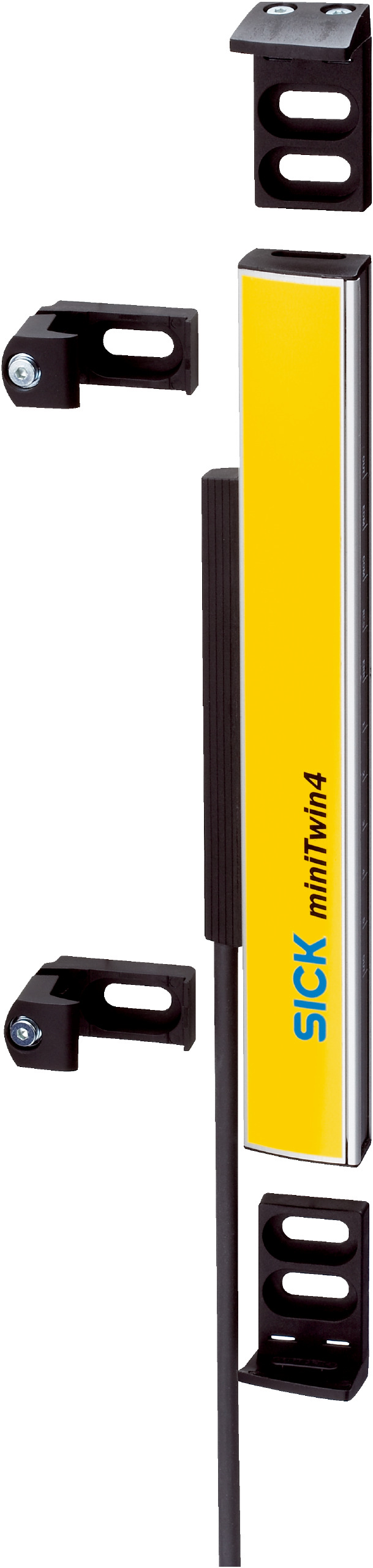

Type 4 Safety Light Curtain | 24 mm Resolution | 0-5 m Scanning Range | IP65 Rated | by SICK
The Type 4 Safety Light Curtain is designed for industrial safety, featuring a 24 mm resolution and a scanning range of 0 to 5 m. With a protective field height of 480 mm and a rapid response time of ≤ 13 ms, it ensures personnel protection in hazardous areas. Ideal for manufacturing and processing plants, this safety sensor offers optical synchronization and is built to withstand harsh environments with its IP65 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 480 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, no separate synchronization required
- System connection: Male connector M12, 5-pin with 350 mm cable
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 480mm x 32mm x 15mm
- Weight: 0.175 kg
Key Features
- Type 4 safety light curtain with 24 mm resolution
- Scanning range from 0 m to 5 m typical
- Protective field height of 480 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +55 °C
- Short-circuit protected PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and processing plants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing reduces material waste
- Energy-efficient operation with low power consumption
- Long service life reduces replacement frequency and waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C4MT-04824ABB03DE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
