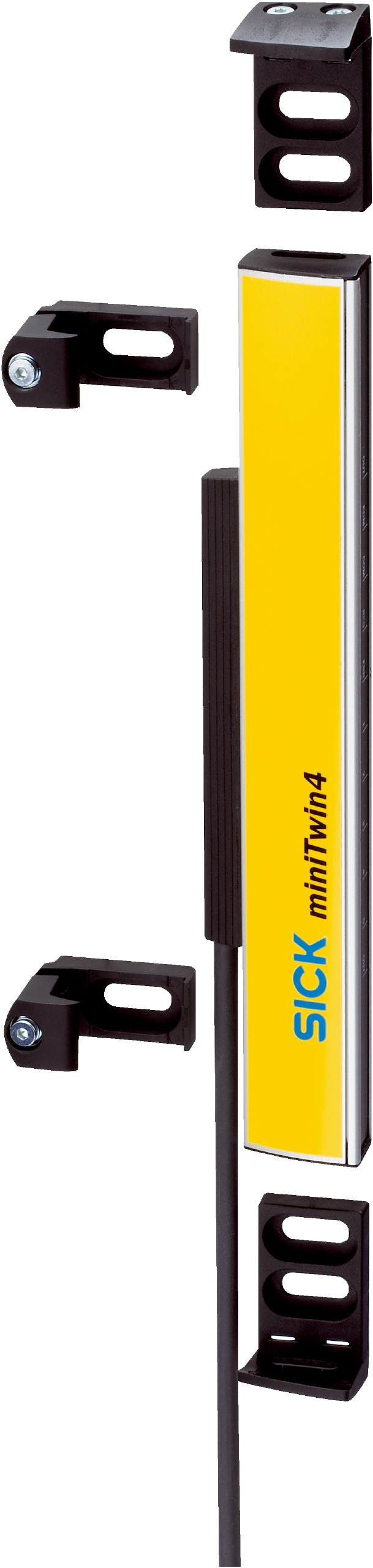

Type 4 Safety Light Curtain | 24 mm Resolution | 1080 mm Protective Field | IP65 Rated | by SICK
The Type 4 Safety Light Curtain is designed for industrial safety, featuring a 24 mm resolution and a protective field height of 1080 mm. With a scanning range of 0 m to 5 m and a rapid response time of ≤ 13 ms, it ensures optimal protection for personnel in hazardous areas. Ideal for machinery and automation applications, this robust light curtain is built to withstand harsh environments with its IP65 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 1080 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate device
- System connection: Male M12, 5-pin connector
- Cable length: 700 mm, max permitted cable length ≤ 20 m
- Configuration: Hard wired
- Display: LEDs
- Protection class: III
- Supply voltage: 24 V DC (19.2 V to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- Output voltage LOW: ≤ 2 V DC
- Current per output: ≤ 300 mA
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 1080mm x 32mm x 15mm
- Weight: 0.38 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Scanning range from 0 m to 5 m with 24 mm resolution
- Protective field height of 1080 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring included
- Automatic beam coding
- IP65 rated enclosure for robust protection
- Operating temperature range from -20 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in standalone or cascade device configurations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable aluminum housing reduces material waste
- Long service life reduces replacement frequency and waste
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C4MT-10824ABB03FE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial safety and automation applications.
