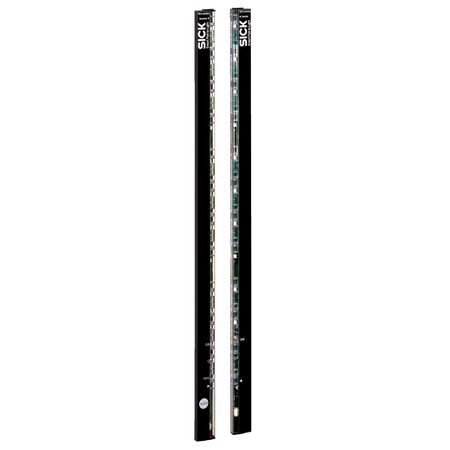

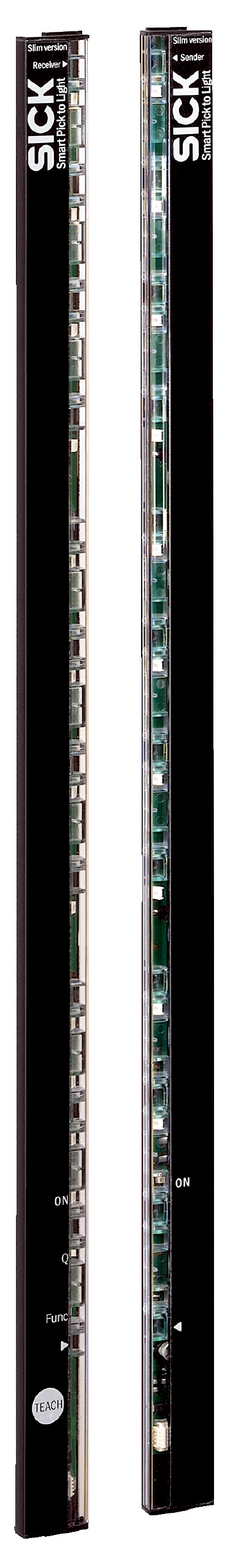

Safety Light Curtain | 4 Infrared Beams | 120 mm Detection Height | IP65 Rated | by SICK
The Safety Light Curtain SPL-F120PTS2W04 features 4 parallel infrared beams with a 120 mm detection height, making it ideal for industrial automation safety monitoring and machine guarding. With a minimum detectable object size of 45 mm and an IP65 rated housing, this sensor ensures reliable performance in harsh environments, providing peace of mind for safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Number of beams: 4
- Detection height: 120 mm
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Optical light exit: Flat
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Switching output: PNP
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M12 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Protection class: III
- Response time: 19 ms
- Operating range: 1.5 m
- Maximum range: 3 m
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 192.4mm x 12.4mm x 36.5mm
- Weight: 0.1 kg
Key Features
- 4 parallel infrared light beams with 120 mm detection height
- Minimum detectable object size of 45 mm
- Automatic teach function for easy setup
- IP65 rated housing for dust and water protection
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
- Optical synchronization for multiple sensor setups
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine guarding and protection
- Object detection in manufacturing lines
- Safety light curtain applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared technology
- Durable PMMA housing reduces need for frequent replacements
- IP65 rating ensures long service life in harsh environments, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SPL-F120PTS2W04 safety sensor is available for immediate purchase, ideal for industrial safety and automation applications.
