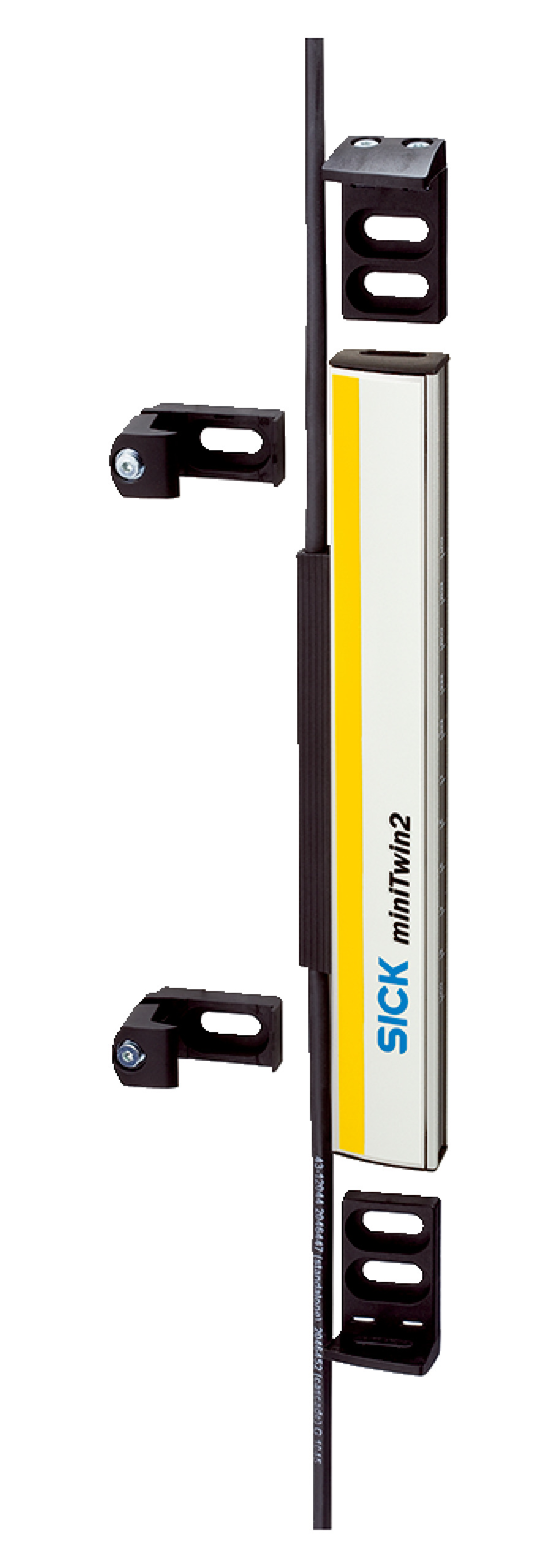

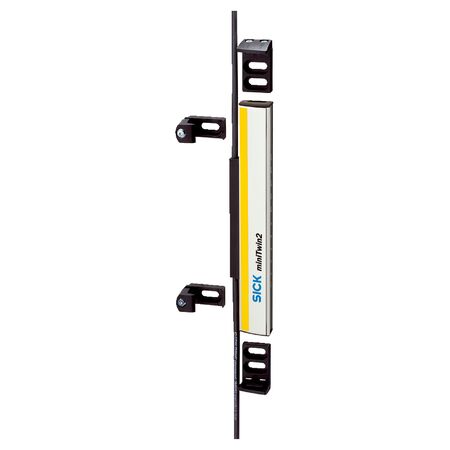

Safety Light Curtain C2MT-05414BBC04DE0 | Type 2 Safety | IP65 Rated | 540mm Protective Field | by SICK
The Safety Light Curtain C2MT-05414BBC04DE0 is designed for industrial automation safety, featuring a 540mm protective field and Type 2 safety compliance. With a response time of ≤ 14 ms and IP65 enclosure rating, it’s perfect for machine safeguarding and cascade device safety systems, ensuring reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System connection: Male connector M12, 5-pin with 350 mm cable
- Extension connection: Female connector M12, 5-pin with 350 mm cable
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- Response time: ≤ 14 ms
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 195 g
- Dimensions (H x L x W): 540mm x 32mm x 15mm
- Weight: 0.195 kg
Key Features
- Twin-Stick system part for 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- 14 mm resolution
- Scanning range typical 0 m to 8 m
- Protective field height of 540 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial automation safety
- Machine safeguarding
- Cascade device safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum housing reduces material waste
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2MT-05414BBC04DE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial machine safeguarding and safety automation applications.
