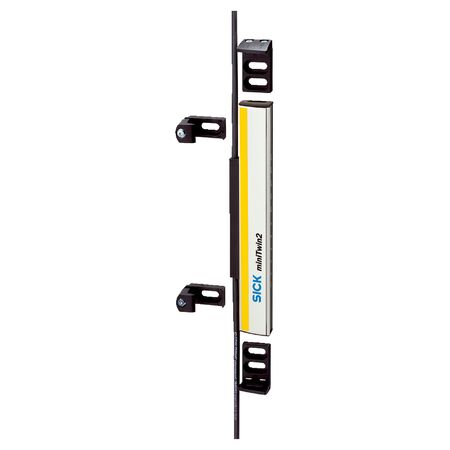

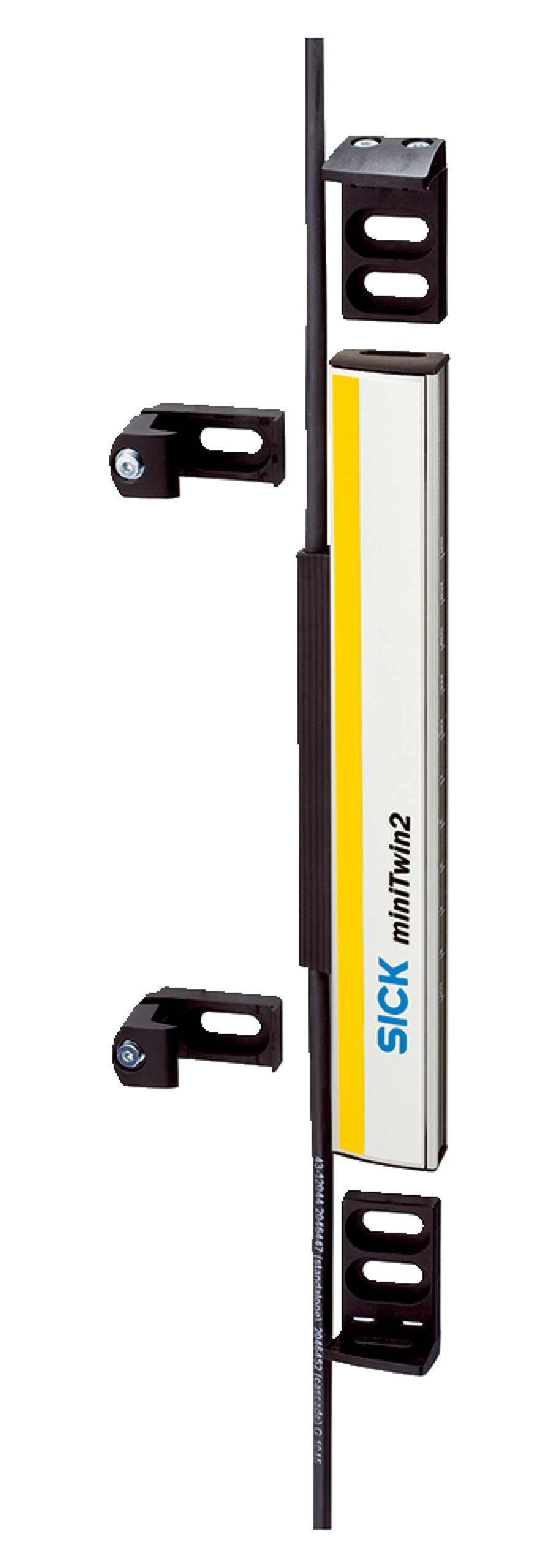

Safety Light Curtain C2MT-07834BBC04FE0 | IP65 Rated | 780mm Protective Field | PNP Outputs | by SICK
The Safety Light Curtain C2MT-07834BBC04FE0 is designed for industrial safety applications, featuring a protective field height of 780 mm and a scanning range of up to 8 m. With a response time of ≤ 13 ms and PNP semiconductor outputs, it ensures reliable protection for personnel in hazardous areas. Ideal for manufacturing plants and assembly lines, this curtain is built to meet stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System connection: Male connector M12, 5-pin with 700 mm cable
- Extension connection: Female connector M12, 5-pin with 700 mm cable
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature range: –20 °C to +55 °C
- Storage temperature range: –25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- Test rate (internal test): 47 /s
- Maximum demand rate: 28 min⁻¹ (EN ISO 13849)
- PFHD: 5.2 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in event of fault: At least one OSSD is OFF
- Housing material: Aluminum alloy ALMGSI 0.5
- Housing cross-section: 15 mm x 32 mm
- Wave length: 850 nm
- Dimensions (H x L x W): 780mm x 32mm x 15mm
- Weight: 0.28 kg
Key Features
- Twin-Stick system part for 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution of 34 mm
- Scanning range typical 0 m to 8 m
- Protective field height of 780 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing plants and assembly lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum alloy housing reduces material waste
- Long service life reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK Twin-Stick Safety Light Curtain C2MT-07834BBC04FE0 is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
