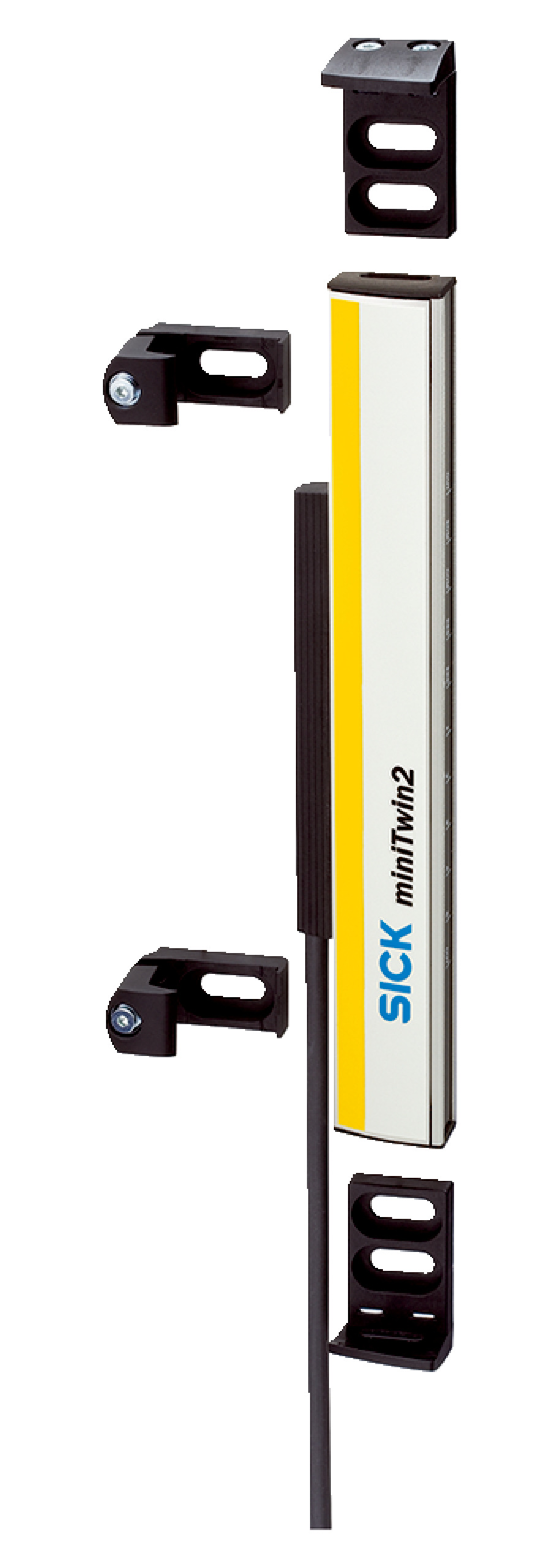

Safety Light Curtain C2MT-10214BBC03FE0 | IP65 Rated | 14mm Resolution | 1,020mm Protective Field | by SICK
The Safety Light Curtain C2MT-10214BBC03FE0 is designed for industrial safety, featuring a 14mm resolution and a protective field height of 1,020mm. With an IP65 rating, it ensures reliable operation in hazardous environments, making it ideal for machinery and automation applications. This versatile curtain can be used in standalone or cascaded configurations, providing optimal protection for personnel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System connection: Male connector M12, 5-pin with 700 mm cable length
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Output signal: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Current-carrying capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature range: -20 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 1020mm x 32mm x 15mm
- Weight: 0.36 kg
Key Features
- Twin-Stick system part for flexible safety solutions
- MiniTwin2 usage as standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution of 14 mm with scanning range from 0 m to 8 m
- Protective field height of 1,020 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signal switching devices (OSSDs)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in standalone or cascaded device configurations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing for long product life
- IP65 rated enclosure for protection against dust and water ingress
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK C2MT-10214BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
