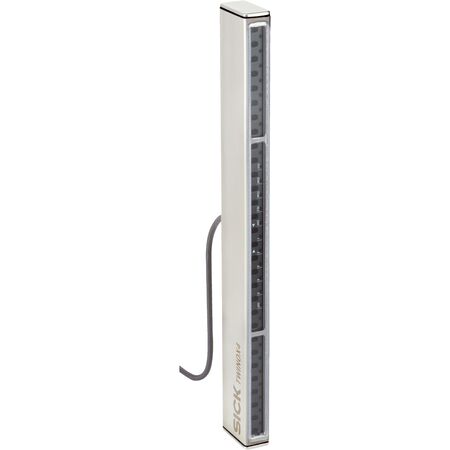

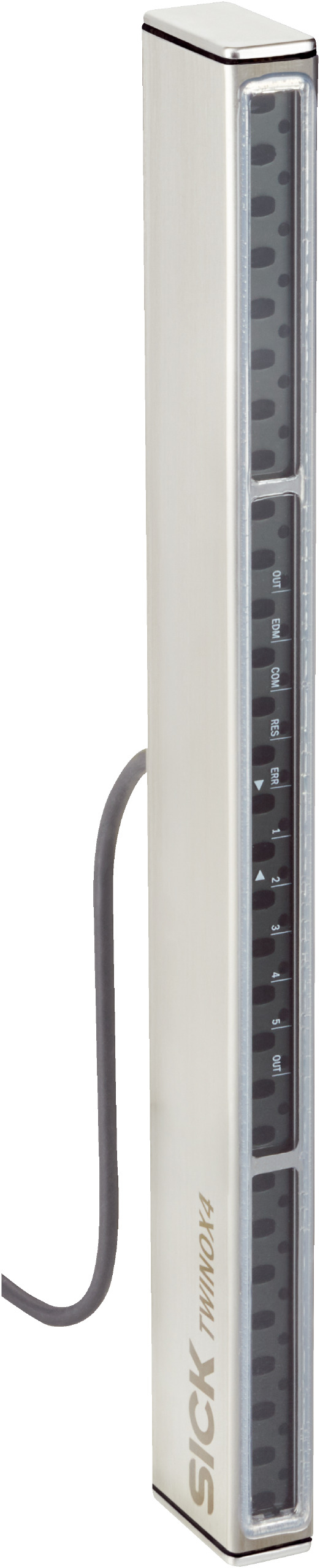

Safety Light Curtain C4IT-03014ABA01KA0 | Type 4 Safety | SIL 3 & PL e | 300 mm Height | by SICK
The Safety Light Curtain C4IT-03014ABA01KA0 is designed for industrial safety applications, featuring a protective field height of 300 mm and a resolution of 14 mm. With a scanning range of up to 4.5 meters and a rapid 14 ms response time, it ensures reliable protection for personnel in automated production lines. Built with robust stainless steel housing and IP65/IP67 ratings, this curtain is perfect for harsh environments, providing peace of mind in safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Protective field height: 300 mm
- Scanning range: 4.5 m
- Response time: 14 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 4.3 x 10⁻⁹
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- Connection: 10 m flying lead cable, 5-wire
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: Approx. 161 mA, 3.1 W
- Output type: PNP semiconductors, short-circuit protected
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67
- Operating temperature: -20°C to +55°C
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Dimensions (H x L x W): 300mm x 50mm x 40mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Protective field height of 300 mm with 14 mm resolution
- Scanning range up to 4.5 meters with 14 ms response time
- Features protective operation, restart interlock, external device monitoring, and beam coding
- Robust stainless steel V4A housing with chemically prestressed float glass front screen
- IP65 and IP67 rated enclosure for harsh environments
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Industrial safety guarding for machinery
- Protection of personnel in automated production lines
- Use in manufacturing plants requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Energy-efficient operation with low power consumption (approx. 3.1 W)
- Long mission time of 20 years reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4IT-03014ABA01KA0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance.
