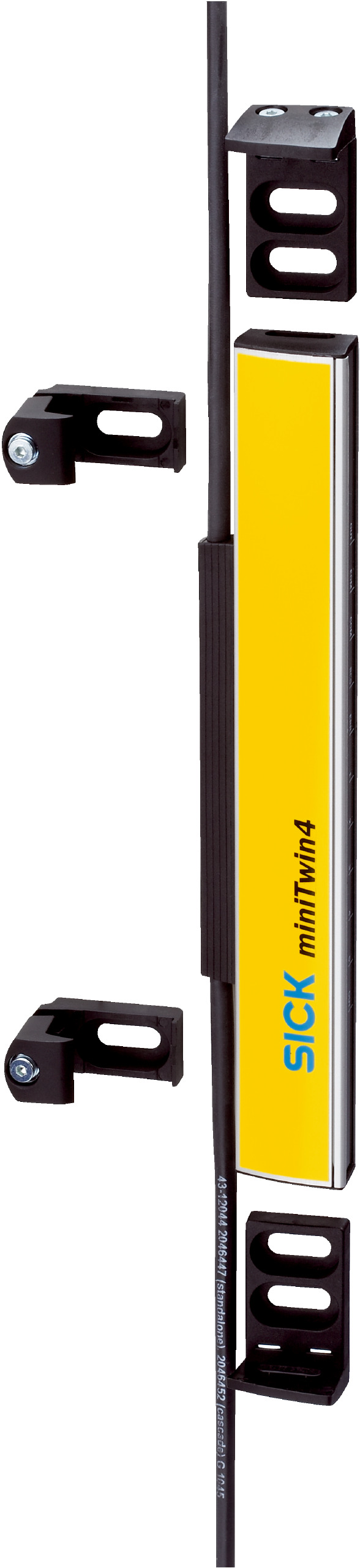

Safety Light Curtain C4MT-01824ABB04BE0 | Type 4 with SIL 3 | 24mm Resolution | 180mm Height | by SICK
The Safety Light Curtain C4MT-01824ABB04BE0 is designed for industrial safety applications, featuring a Type 4 safety rating with SIL 3 and PL e integrity. With a resolution of 24 mm and a protective field height of 180 mm, it ensures reliable presence detection and machine safeguarding. Ideal for manufacturing and automation, this curtain supports 2- or 3-device cascade configurations and offers optical synchronization for quick response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 180 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Restart interlock and External device monitoring (EDM): Yes
- Beam coding: Automatic
- System connection: Male connector M12, 5-pin, 160 mm cable
- Extension connection: Female connector M12, 5-pin, 160 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- Output voltage LOW: ≤ 2 V DC
- Current per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 75 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 180mm x 32mm x 15mm
- Weight: 0.1 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Twin-Stick system part for 2- or 3-device cascade configurations
- Mounting options with C-fix or L-fix brackets
- Resolution of 24 mm with protective field height of 180 mm
- Response time ≤ 13 ms with optical synchronization
- Automatic beam coding and restart interlock
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signals
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety light curtains and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Cascade systems for extended safety coverage
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable aluminum alloy housing supports long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4MT-01824ABB04BE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial machine safeguarding and safety automation applications.
