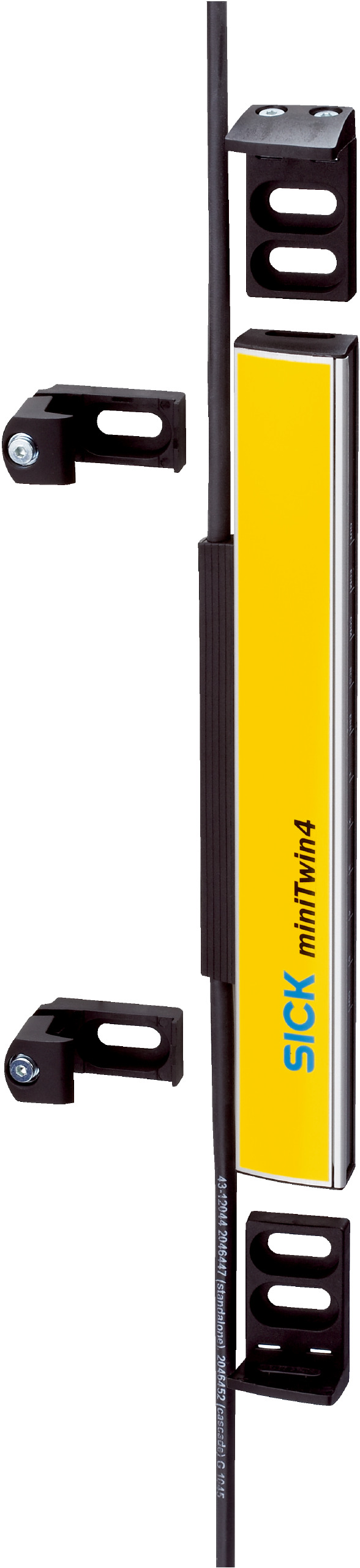

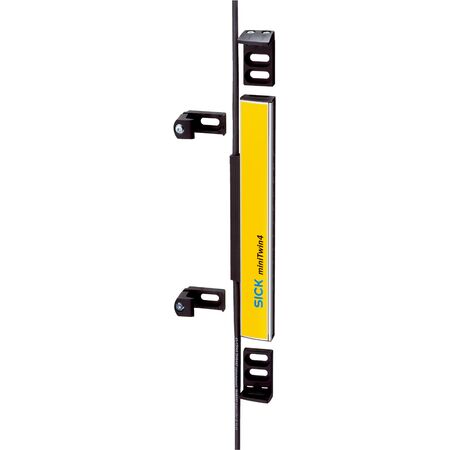

Safety Light Curtain C4MT-03614ABB04DE0 | Type 4 Safety | 14 mm Resolution | 360 mm Protective Field | by SICK
The Safety Light Curtain C4MT-03614ABB04DE0 is designed for industrial safety applications, featuring a Type 4 safety rating with SIL 3 and PL e integrity. With a 14 mm resolution and a protective field height of 360 mm, it ensures reliable presence detection and machine safeguarding. Ideal for cascade systems, this curtain offers optical synchronization and is built to withstand harsh environments with an IP65 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 360 mm
- Response time: ≤ 14 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- System connection: Male connector M12, 5-pin, 350 mm cable
- Extension connection: Female connector M12, 5-pin, 350 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- Output voltage LOW: ≤ 2 V DC
- Current per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 32mm x 350mm x 15mm
- Weight: 0.135 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Twin-Stick system part for 2- or 3-device cascade configurations
- Mounting options with C-fix or L-fix brackets
- 14 mm resolution with 360 mm protective field height
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
