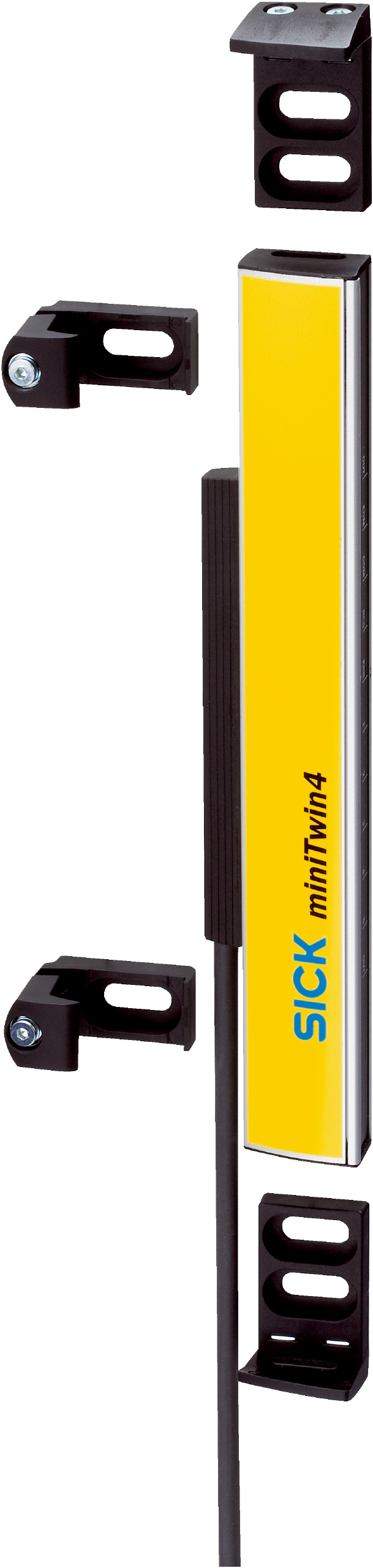

Safety Light Curtain C4MT-03634ABB03DE0 | Type 4 Safety | 34 mm Resolution | IP65 Rated | by SICK
The C4MT-03634ABB03DE0 safety light curtain is designed for industrial safety applications, featuring a Type 4 safety rating with SIL 3 and PL e integrity. With a scanning range of 0 to 5 m and a resolution of 34 mm, it ensures reliable personnel protection in hazardous areas. Built for durability with an IP65-rated aluminum housing, this device is perfect for standalone use or in cascades, providing peace of mind in automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 360 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate device
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output type: PNP semiconductors, short-circuit protected
- Switching voltage ON: 24 V DC (VS – 2.25 V DC ... VS)
- Switching voltage OFF: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 360mm x 32mm x 15mm
- Weight: 0.135 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Scanning range from 0 m to 5 m with 34 mm resolution
- Protective field height of 360 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male M12 5-pin connector with 350 mm cable length
- Short-circuit protected PNP semiconductor outputs
- Housing made of aluminum alloy with IP65 rating
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use as standalone device or in 2- or 3-device cascades
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption enhances energy efficiency
- Long service life reduces replacement frequency and waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C4MT-03634ABB03DE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable personnel protection.
