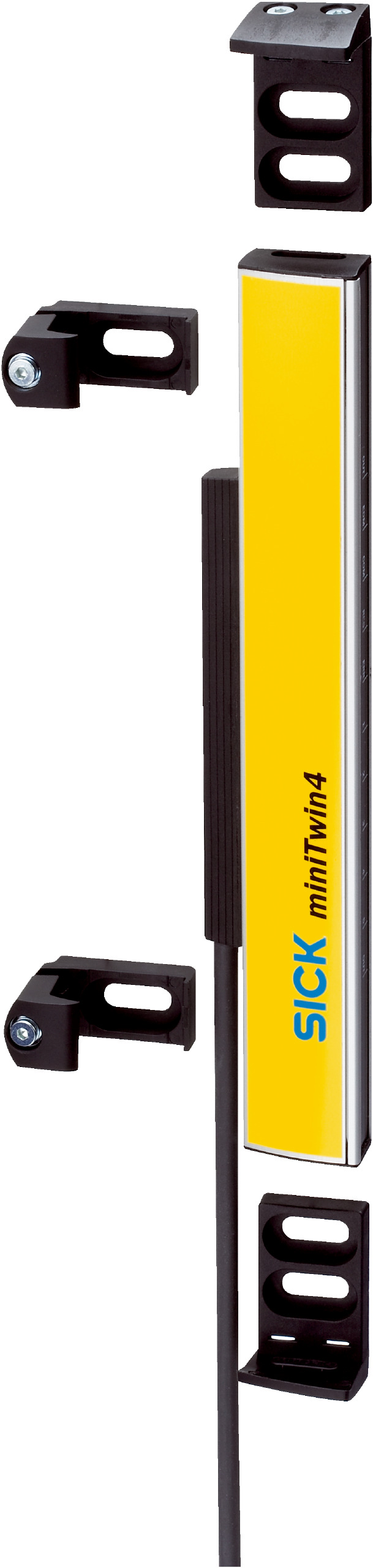

Safety Light Curtain C4MT-04224ABB03DE0 | Type 4 Safety | 24 mm Resolution | IP65 Rated | by SICK
The Safety Light Curtain C4MT-04224ABB03DE0 is designed for industrial safety applications, featuring a 24 mm resolution and a scanning range of up to 5 m. With an IP65 rating for dust and water protection, this curtain ensures reliable operation in hazardous environments, making it ideal for machinery and automation systems. Its optical synchronization and fast response time of ≤ 13 ms enhance safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 420 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, no separate synchronization needed
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum alloy ALMGSI 0.5
- Housing cross-section: 15 mm x 32 mm
- Cable length: 350 mm
- Permitted cable length: ≤ 20 m
- Display elements: LEDs
- Wave length: 850 nm
- Dimensions (H x L x W): 420mm x 32mm x 15mm
- Weight: 0.155 kg
Key Features
- Type 4 safety light curtain with 24 mm resolution
- Scanning range from 0 m to 5 m typical
- Protective field height of 420 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male M12 5-pin connector with 350 mm cable length
- Short-circuit protected PNP semiconductor output signal switching devices
- Housing made of aluminum alloy ALMGSI 0.5
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety for machinery and automation systems
- Protection of personnel in hazardous areas
- Use in standalone or cascade device configurations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste through long product life
- Low power consumption enhances energy efficiency in industrial safety systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4MT-04224ABB03DE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
