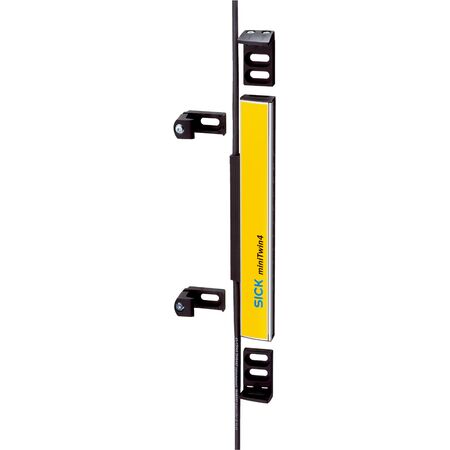

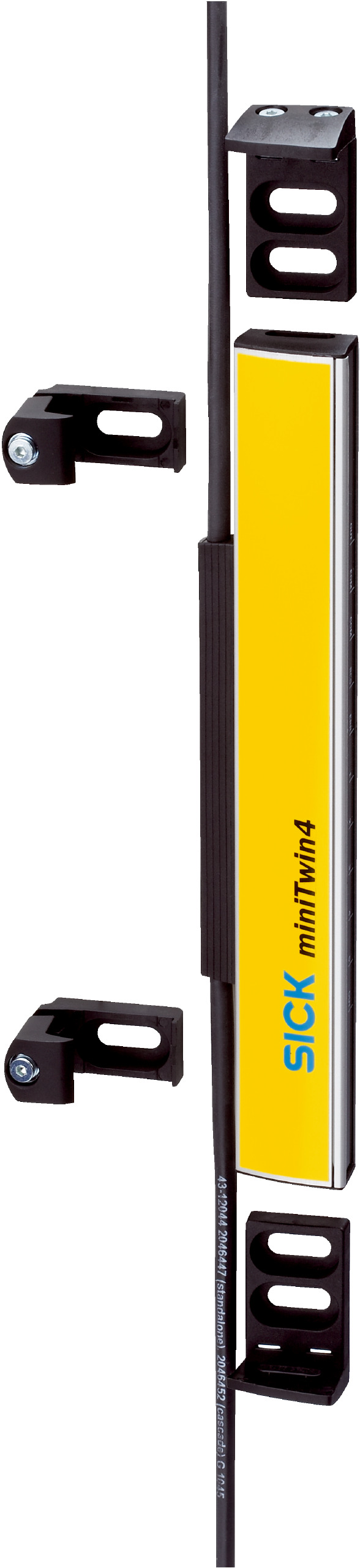

Safety Light Curtain C4MT-04834ABB04DE0 | IP65 Rated | 34mm Resolution | Type 4 Safety | by SICK
The Safety Light Curtain C4MT-04834ABB04DE0 is designed for industrial safety applications, featuring a 34mm resolution and IP65 enclosure rating. Ideal for machine safeguarding and presence detection, this curtain ensures reliable operation with a response time of ≤ 13 ms and optical synchronization. Built for durability and compliance, it’s perfect for automation environments requiring enhanced safety measures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System connection: Male connector M12, 5-pin with 350 mm cable
- Extension connection: Female connector M12, 5-pin with 350 mm cable
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Response time: ≤ 13 ms
- Protection class: III (EN 61140)
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Current-carrying capacity per OSSD: ≤ 300 mA
- Enclosure rating: IP65 (EN 60529)
- Operating temperature range: -20 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 1.3 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Wave length: 850 nm
- Dimensions (H x L x W): 480mm x 32mm x 15mm
- Weight: 0.175 kg
Key Features
- Twin-Stick system part for miniTwin4 cascade configurations
- Mounting options with C-fix or L-fix brackets
- Resolution of 34 mm with protective field height of 480 mm
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Cascade systems for extended safety coverage
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing extends product life reducing waste
- Non-contact sensing reduces mechanical wear and maintenance
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK C4MT-04834ABB04DE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial machine safeguarding and safety automation applications.
