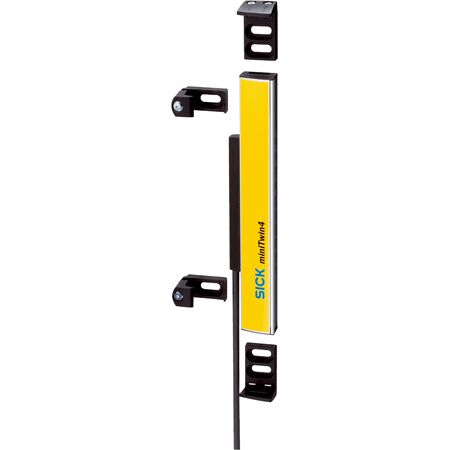

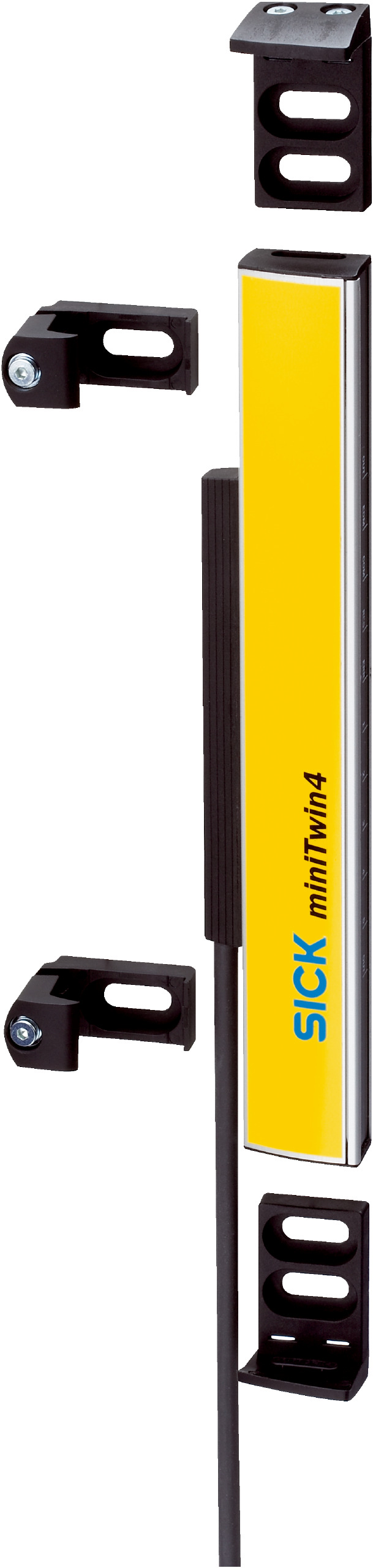

Safety Light Curtain C4MT-06034ABB03FE0 | Type 4 | 34 mm Resolution | IP65 Rated | by SICK
The Safety Light Curtain C4MT-06034ABB03FE0 is designed for industrial safety, featuring a 34 mm resolution and Type 4 safety classification. With a protective field height of 600 mm and a rapid response time of ≤ 13 ms, it ensures reliable personnel protection in hazardous areas. Ideal for standalone or cascade configurations, this curtain is built to withstand harsh environments with its IP65 rated enclosure and durable aluminum alloy housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Response time: ≤ 13 ms
- Synchronization: Optical without separate device
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: Male M12, 5-pin connector with 700 mm cable
- Power supply: 24 V DC (19.2 V to 28.8 V DC)
- Output: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Current capacity per OSSD: ≤ 300 mA
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 600mm x 32mm x 15mm
- Weight: 0.215 kg
Key Features
- Type 4 safety light curtain with 34 mm resolution
- Protective field height of 600 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in standalone or cascade configurations with miniTwin4 devices
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing extends product life reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C4MT-06034ABB03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
