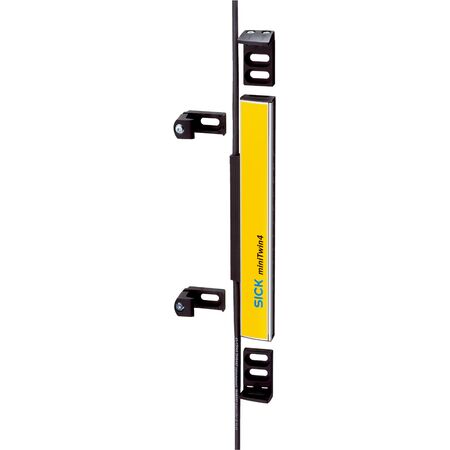

Safety Light Curtain C4MT-06034ABB04FE0 | Type 4 with SIL 3 | 600mm Protective Height | IP65 Rated | by SICK
The C4MT-06034ABB04FE0 safety light curtain is designed for industrial safety applications, featuring a scanning range of 0 to 5 m and a resolution of 34 mm. With a protective field height of 600 mm and optical synchronization, it ensures reliable presence detection for machine safeguarding. Built for harsh environments, this Type 4 safety sensor is ideal for manufacturing and automation, enhancing workplace safety and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 600 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- System connection: Male connector M12, 5-pin, 700 mm cable length
- Extension connection: Female connector M12, 5-pin, 700 mm cable length
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section (incl. system connection): 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 15% to 95%, Non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 600mm x 32mm x 15mm
- Weight: 0.215 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Scanning range from 0 m to 5 m with 34 mm resolution
- Protective field height of 600 mm
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding for secure operation
- IP65 rated enclosure for harsh environments
- LED display elements for status indication
- Short-circuit protected PNP semiconductor outputs
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Cascade systems for extended safety coverage
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing extends product life reducing waste
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C4MT-06034ABB04FE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
