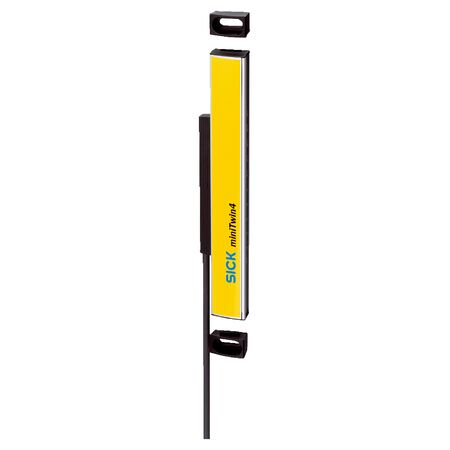

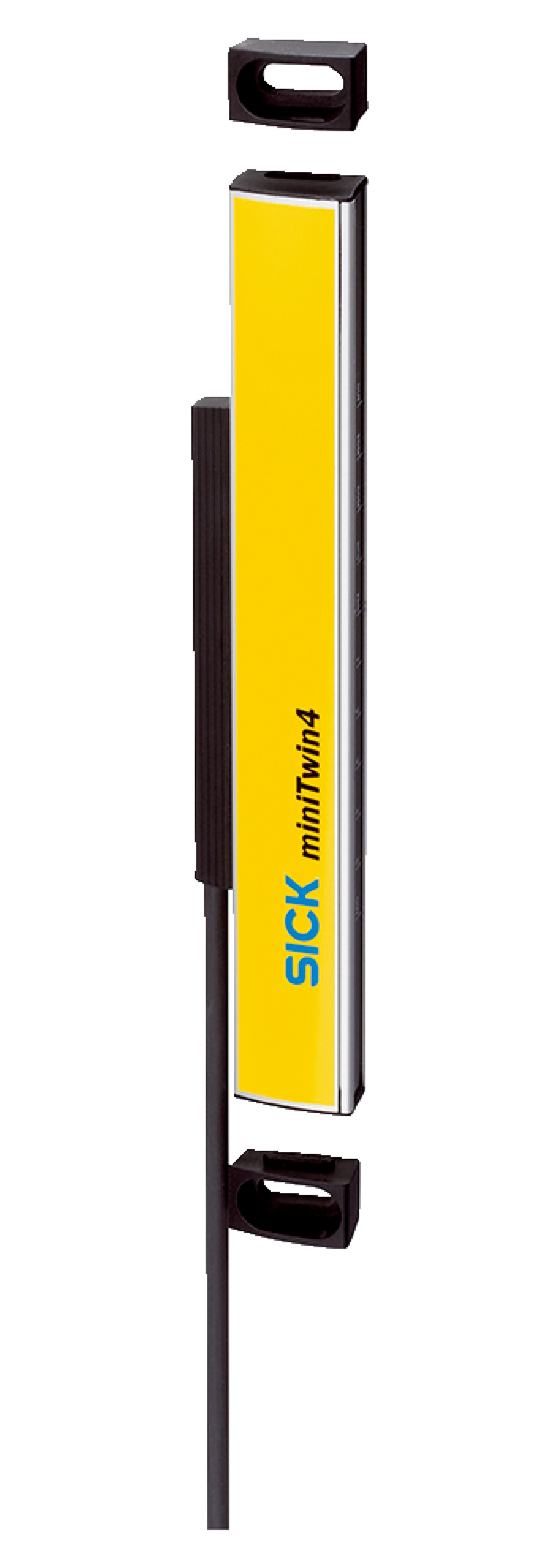

Safety Light Curtain C4MT-07834ABB03FB0 | Type 4 Compliance | IP65 Rated | 780mm Height | by SICK
The Safety Light Curtain C4MT-07834ABB03FB0 is designed for industrial automation safety, featuring a 780mm protective field height and Type 4 compliance for optimal machine safeguarding. With an IP65 rated enclosure and a response time of ≤ 13 ms, it ensures reliable access protection in manufacturing environments, making it ideal for qualified personnel installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 780 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, no separate synchronization needed
- System connection: Male connector M12, 5-pin with 700 mm cable
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 780mm x 32mm x 15mm
- Weight: 0.28 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 compliance
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization without separate synchronization device
- Automatic beam coding
- Restart interlock and external device monitoring (EDM)
- Protection class III (EN 61140)
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -20°C to +55°C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety
- Machine safeguarding
- Access protection in manufacturing environments
- Use as a standalone device with miniTwin4 system
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing extends product life reducing waste
- Low power consumption enhances energy efficiency
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C4MT-07834ABB03FB0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
