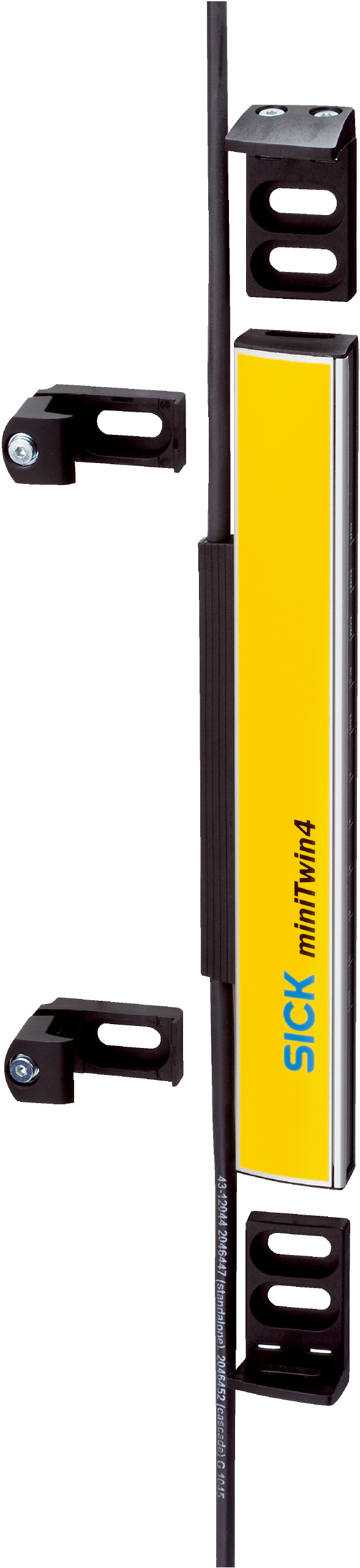

Safety Light Curtain C4MT-08434ABB04FE0 | Twin-Stick System | 34 mm Resolution | IP65 Rated | by SICK
The Safety Light Curtain C4MT-08434ABB04FE0 features a Twin-Stick system for flexible cascade configurations, ensuring optimal presence detection in industrial settings. With a resolution of 34 mm and a protective field height of 840 mm, it is designed for machine safeguarding and compliance with Type 4 safety standards. Built to withstand harsh environments, this curtain operates effectively in temperatures from -20 °C to +55 °C, making it ideal for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 840 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 840mm x 32mm x 15mm
- Weight: 0.3 kg
Key Features
- Twin-Stick system part for flexible cascade configurations
- Mounting options with C-fix or L-fix brackets
- Resolution of 34 mm with protective field height of 840 mm
- Response time ≤ 13 ms with optical synchronization
- Type 4 safety rating with SIL 3, Category 4, and PL e
- Automatic beam coding with restart interlock and external device monitoring
- Male and female M12 5-pin connectors with up to 20 m cable length
- Short-circuit protected PNP semiconductor output signals
- Robust aluminum alloy housing with IP65 rating
- Wide ambient operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and relevant safety standards to ensure proper integration and compliance.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Cascade systems for extended safety coverage
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics
- Durable aluminum housing reduces material waste
- Long operational life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C4MT-08434ABB04FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
