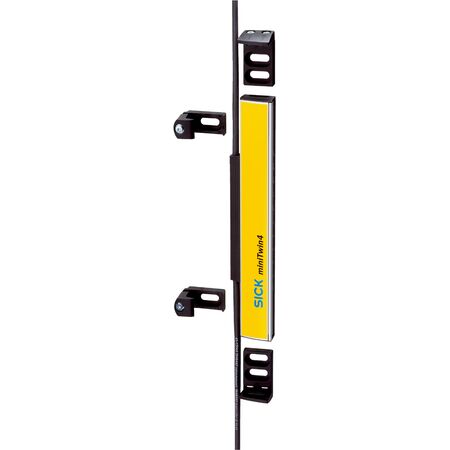

Safety Light Curtain C4MT-09034ABB04FE0 | Type 4 with SIL 3 | 900mm Protective Field | IP65 Rated | by SICK
The C4MT-09034ABB04FE0 safety light curtain is designed for industrial applications requiring reliable presence detection. With a scanning range of 0 to 5 meters and a resolution of 34 mm, it ensures optimal safety in machine safeguarding. Built for durability with an IP65 rated enclosure, this light curtain operates effectively in harsh environments, making it ideal for manufacturing and automation settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 900 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- System connection: Male connector M12, 5-pin, 700 mm cable length
- Extension connection: Female connector M12, 5-pin, 700 mm cable length
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 900mm x 32mm x 15mm
- Weight: 0.32 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Scanning range from 0 m to 5 m with 34 mm resolution
- Protective field height of 900 mm
- Optical synchronization without separate synchronization device
- Automatic beam coding and restart interlock
- LED display elements for status indication
- IP65 rated enclosure for harsh environments
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Cascade systems for extended safety coverage
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing extends product life reducing waste
- Low power consumption enhances energy efficiency
- Robust design minimizes replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C4MT-09034ABB04FE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
