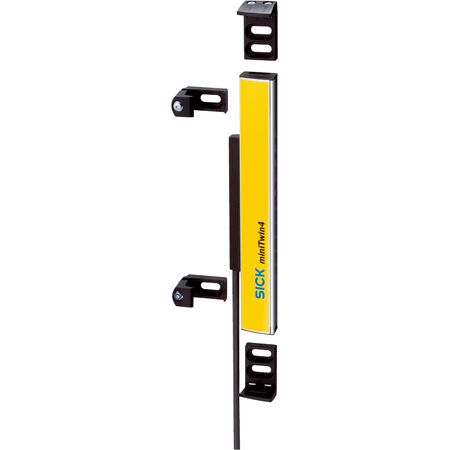

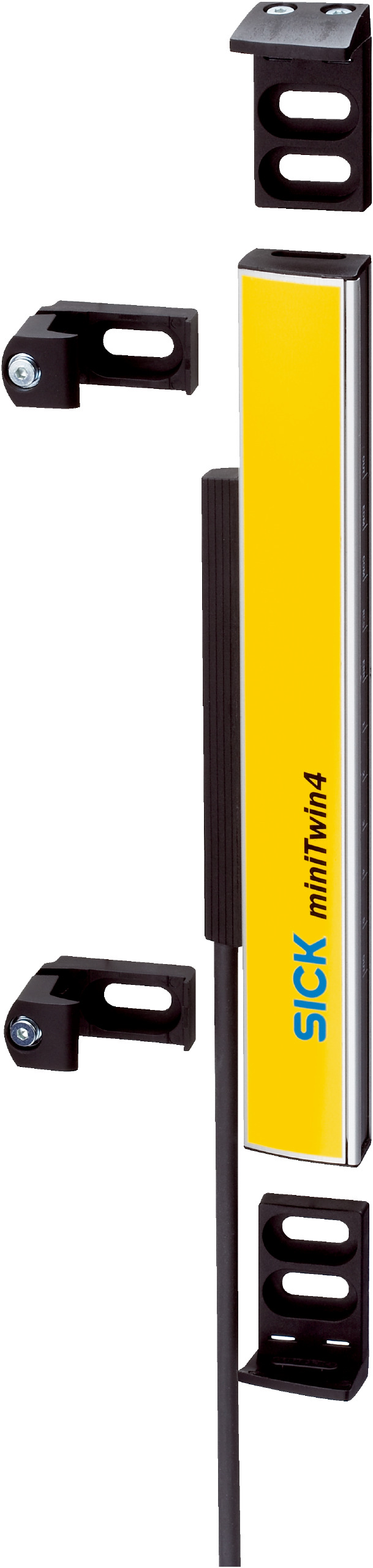

Safety Light Curtain C4MT-09614ABB03FE0 | Type 4 | 14 mm Resolution | IP65 Rated | by SICK
The Safety Light Curtain C4MT-09614ABB03FE0 is designed for industrial safety, featuring a 14 mm resolution and a scanning range of up to 5 m. With a protective field height of 960 mm and a rapid response time of ≤ 17 ms, it ensures optimal protection for personnel in hazardous areas. Built to withstand harsh environments with an IP65 rating, this safety sensor is perfect for manufacturing and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 960 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Operating voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Weight: 340 g
- Housing material: Aluminum alloy ALMGSI 0.5
- Cable length: 700 mm
- Permitted cable length: ≤ 20 m
- Display elements: LEDs
- Dimensions (H x L x W): 960mm x 15mm x 32mm
- Weight: 0.34 kg
Key Features
- Type 4 safety light curtain with 14 mm resolution
- Scanning range from 0 m to 5 m typical
- Protective field height of 960 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- IP65 rated enclosure for robust protection
- Operating temperature range from -20 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure compliance and optimal operation.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing promotes long product life and reduces waste
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C4MT-09614ABB03FE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
