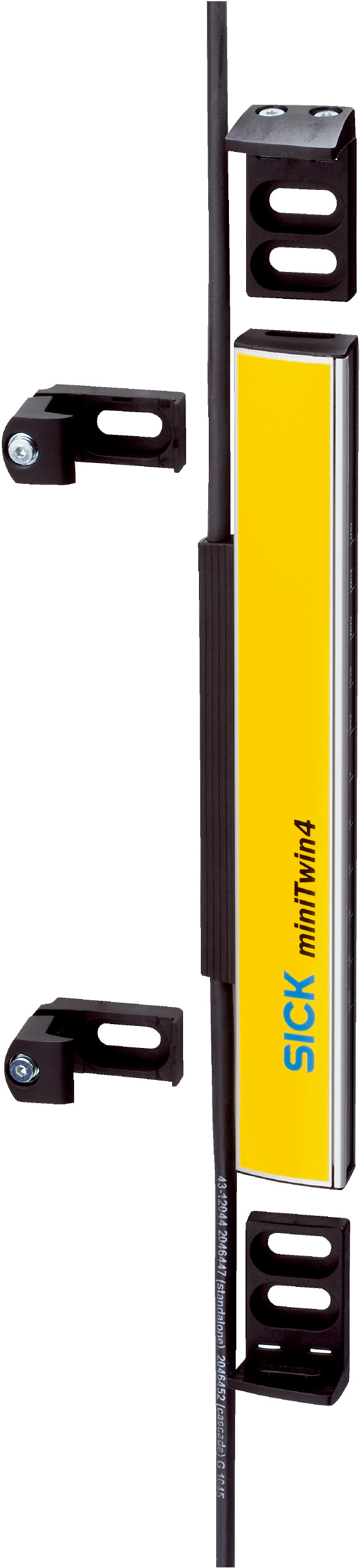

Safety Light Curtain C4MT-09614ABB04FE0 | Type 4 Safety | SIL 3 & PL e | 960 mm Height | by SICK
The C4MT-09614ABB04FE0 safety light curtain is designed for industrial safety applications, featuring a resolution of 14 mm and a protective field height of 960 mm. With Type 4 safety integrity (SIL 3) and optical synchronization, it ensures reliable operation in machinery and automation systems. Ideal for use in manufacturing and processing plants, this robust curtain is housed in an IP65-rated aluminum alloy for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, or middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 960 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Restart interlock and external device monitoring included
- System connection: Male M12, 5-pin connector, 700 mm cable
- Extension connection: Female M12, 5-pin connector, 700 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- Output voltage LOW: ≤ 2 V DC
- Current per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 340 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 960mm x 32mm x 15mm
- Weight: 0.34 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Resolution of 14 mm with protective field height of 960 mm
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM) included
- Automatic beam coding for secure operation
- IP65 rated aluminum alloy housing for robust protection
- Response time ≤ 17 ms
- Male and female M12 5-pin connectors with up to 20 m cable length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety for machinery and automation systems
- Use as host or middle guest in 2- or 3-device cascade miniTwin4 systems
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste and extends product life
- Low power consumption with efficient electronics
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4MT-09614ABB04FE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial safety and automation applications.
