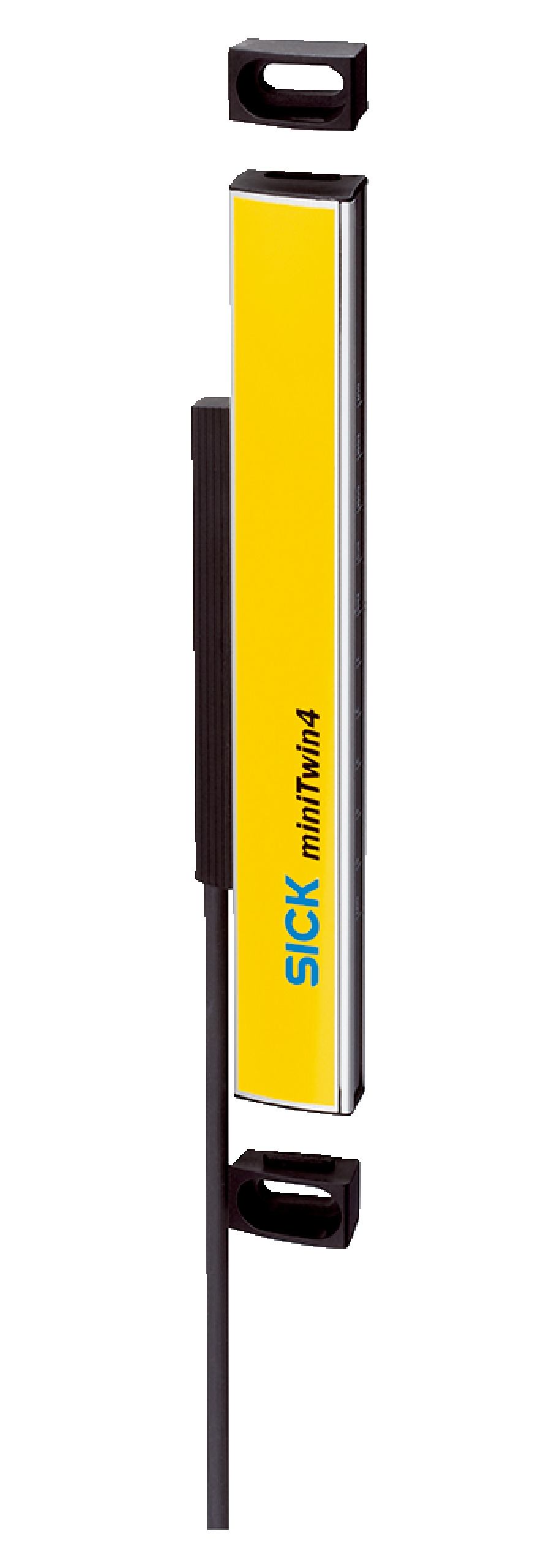

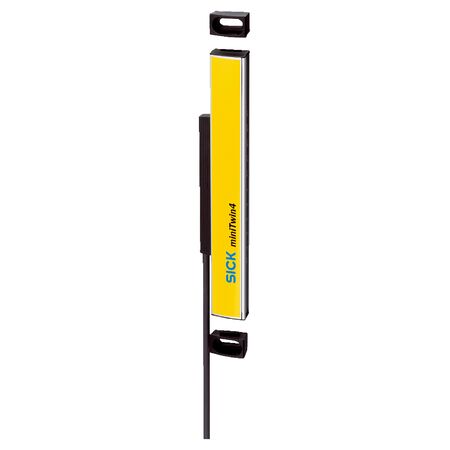

Safety Light Curtain C4MT-09634ABB03FB0 | Type 4 with SIL 3 | 960 mm Protective Field | IP65 Rated | by SICK
The Safety Light Curtain C4MT-09634ABB03FB0 is designed for industrial safety, featuring a 960 mm protective field height and a scanning range of up to 5 m. With Type 4 safety integrity levels and optical synchronization, it ensures reliable personnel protection in hazardous areas. Built for durability with an IP65 rated enclosure, this safety sensor is perfect for automation systems and manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 960 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- System connection: Male connector M12, 5-pin with 700 mm cable
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 960mm x 32mm x 15mm
- Weight: 0.34 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Scanning range from 0 m to 5 m with 960 mm protective field height
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM) included
- Automatic beam coding for enhanced safety
- IP65 rated enclosure for protection against dust and water
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signals
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety for machinery and automation systems
- Protection of personnel in hazardous areas
- Use as a standalone safety device in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable aluminum alloy housing reduces material waste
- Long service life minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4MT-09634ABB03FB0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
