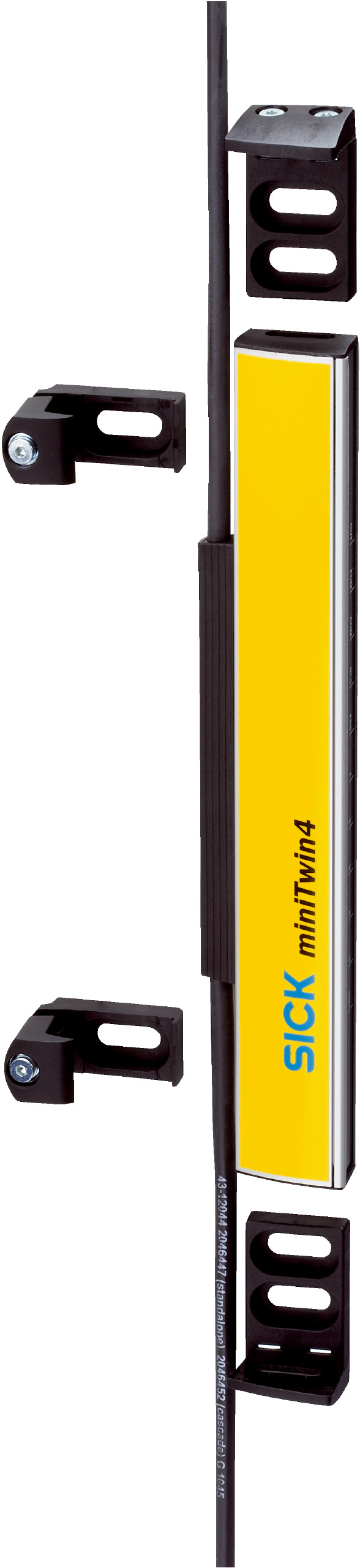

Safety Light Curtain C4MT-10214ABB04FE0 | Twin-Stick System | 14 mm Resolution | IP65 Rated | by SICK
The Safety Light Curtain C4MT-10214ABB04FE0 features a Twin-Stick system designed for 2- or 3-device cascade configurations, ensuring optimal presence detection in industrial settings. With a protective field height of 1,020 mm and a scanning range of up to 5 m, this light curtain is perfect for machine safeguarding and enhancing workplace safety. Its robust aluminum alloy housing and IP65 rating make it suitable for various environments, providing reliable performance and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 1,020 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Output signal: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 1020mm x 32mm x 15mm
- Weight: 0.36 kg
Key Features
- Twin-Stick system part for 2- or 3-device cascade configurations
- Mounting options with C-fix or L-fix brackets
- 14 mm resolution with scanning range from 0 m to 5 m
- Protective field height of 1,020 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization device
- Type 4 safety classification (IEC 61496-1)
- SIL 3 safety integrity level (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signals
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Cascade systems for extended safety coverage
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum alloy housing reduces material waste
- Long service life reduces replacement frequency and waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C4MT-10214ABB04FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
