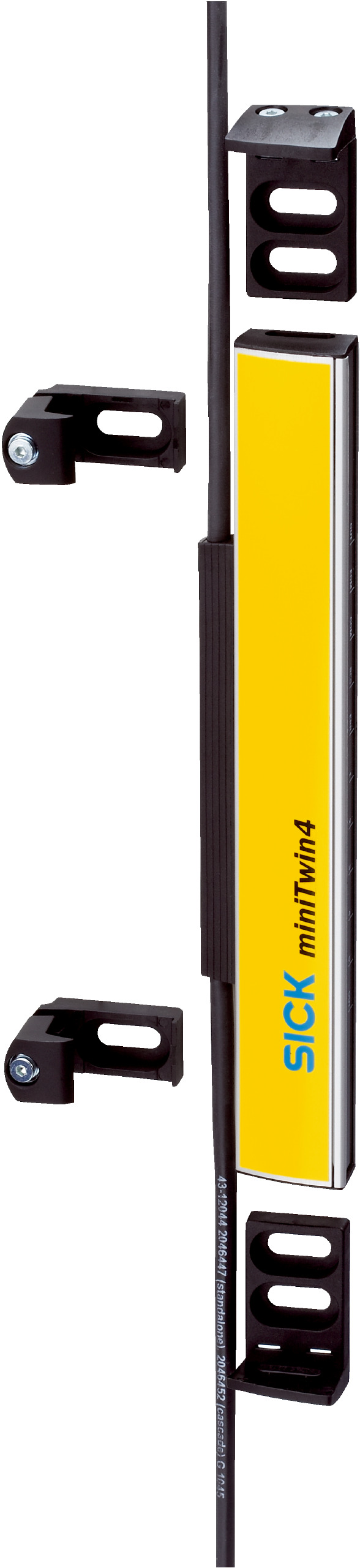

Safety Light Curtain C4MT-10834ABB04FE0 | Type 4 Safety | SIL 3 & PL e | IP65 Rated | by SICK
The C4MT-10834ABB04FE0 Safety Light Curtain is designed for industrial automation safety, featuring a Type 4 safety rating with SIL 3 and PL e integrity levels. Ideal for machine safeguarding and cascade systems, it offers optical synchronization and robust IP65 protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 1080 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Restart interlock and external device monitoring included
- System connection: Male connector M12, 5-pin, 700 mm cable
- Extension connection: Female connector M12, 5-pin, 700 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output voltage ON: 24 V DC (VS – 2.25 V DC to VS)
- Output voltage OFF: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20°C to +55°C
- Storage temperature: -25°C to +70°C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 1080mm x 32mm x 15mm
- Weight: 0.38 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Twin-Stick system part for 2- or 3-device cascade configurations
- Mounting options with C-fix or L-fix brackets
- Optical synchronization without separate synchronization device
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output switching devices
- IP65 rated enclosure for robust protection
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety
- Machine safeguarding
- Cascade systems with miniTwin4 devices
- Safety monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing reduces material waste through long product life
- Low power consumption enhances energy efficiency in industrial safety systems
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C4MT-10834ABB04FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
