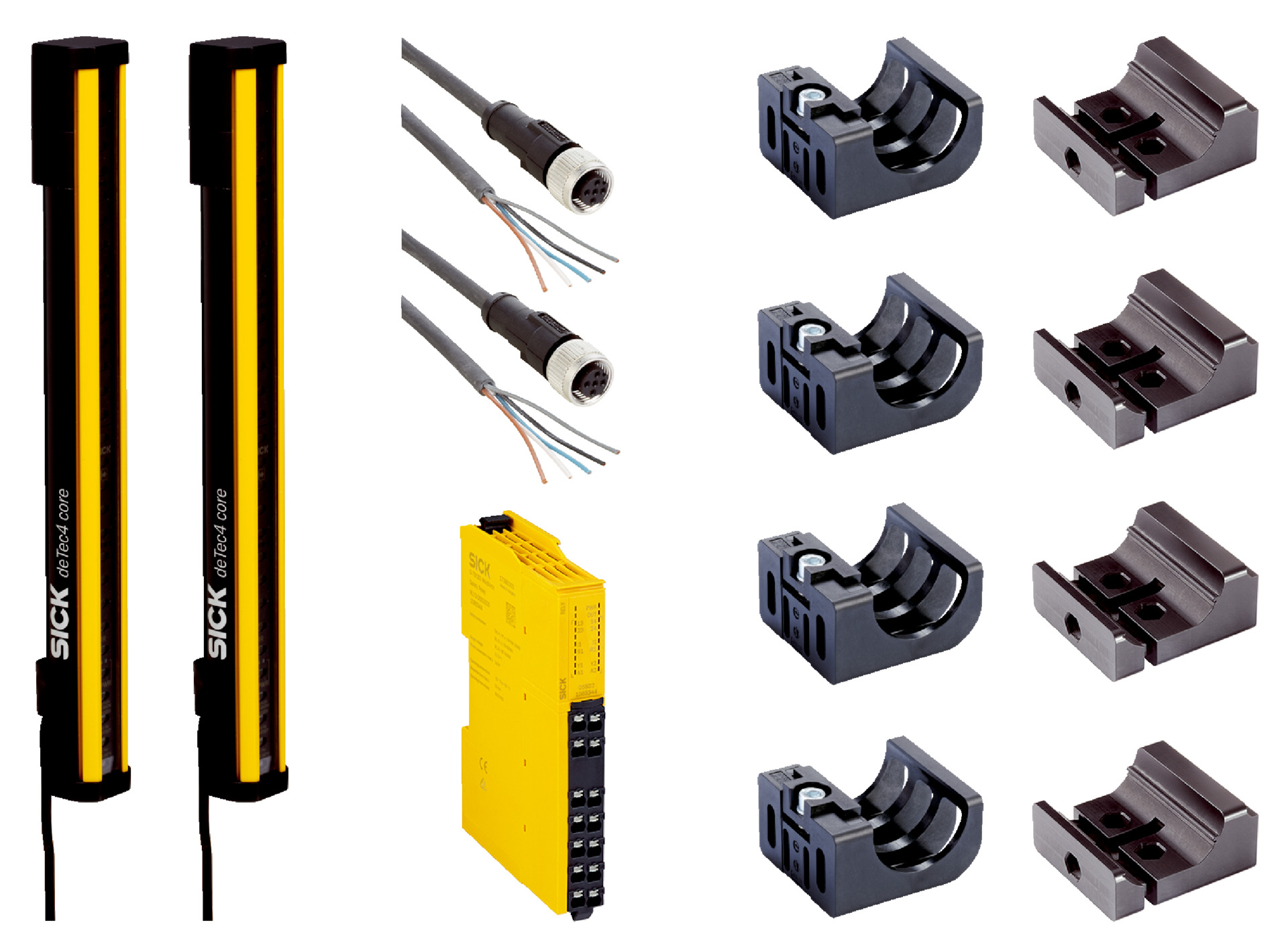

Safety Light Curtain deTec4 Core Set 14/1500 | Type 4 | SIL 3 | IP65 & IP67 | by SICK
The deTec4 Core Set 14/1500 is a high-performance safety light curtain designed for industrial applications. With a resolution of 14 mm and a protective field height of 1,500 mm, it ensures reliable personnel protection without blind zones. Built to withstand harsh environments, it features a robust aluminum housing and operates effectively in temperatures from -30 °C to +55 °C, making it ideal for machine safeguarding and automation safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault condition: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm with specified bend radius
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), wavelength 850 nm
- Dimensions (H x L x W): 1500mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 14 mm with a scanning range of 10 m
- Protective field height of 1,500 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection rating of IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety for normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable construction reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec4 Core Set 14/1500 is available for immediate purchase, ideal for industrial safety applications requiring reliable personnel protection.
