Safety Light Curtain deTec2 Core Set 14/1200 | 14 mm Resolution | 10 m Scanning Range | IP65 & IP67 Rated | by SICK
The deTec2 Core Set 14/1200 is a cutting-edge safety light curtain designed for industrial applications, featuring a 14 mm resolution and a scanning range of 10 m. With a protective field height of 1,200 mm and no blind zones, it ensures optimal machine safeguarding and personnel protection. Built for reliability, this system includes an aluminum extruded profile housing and operates effectively in temperatures ranging from -30 °C to +55 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: deTec2 Core

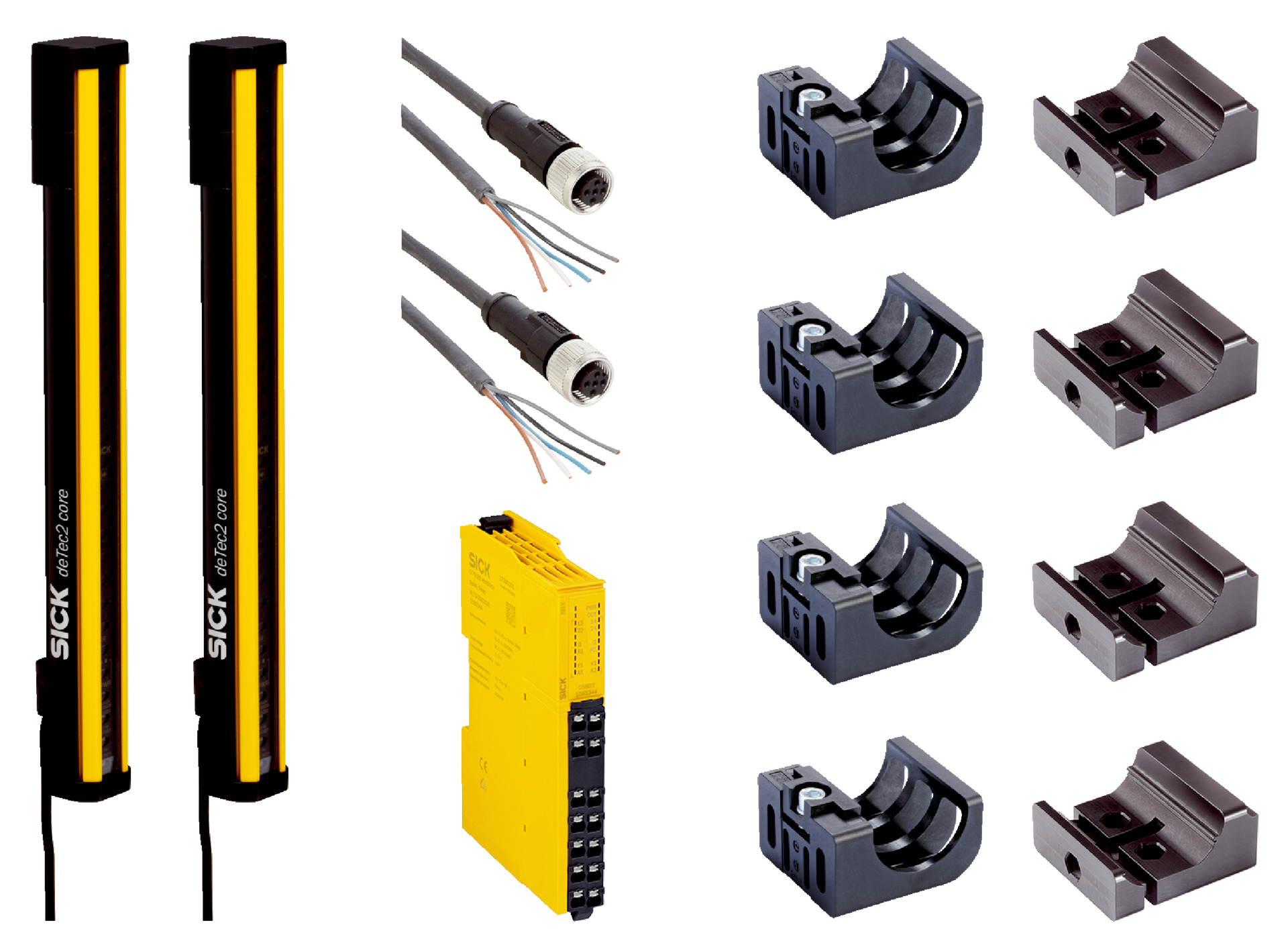

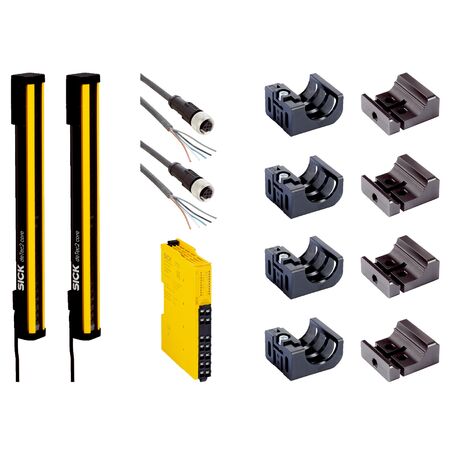

- System part: Set including sender, receiver, brackets, cables, safety relay, and instructions
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1,200 mm
- No blind zones
- Synchronization: Optical
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- System connection: Plug, M12, 5-pin with 150 mm cable
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Output: 2 PNP semiconductors, short-circuit protected
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Wavelength: 850 nm
- Dimensions (H x L x W): 1200mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 14 mm with a scanning range of 10 m
- Protective field height of 1,200 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection rating of IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
- AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec2 Core Set 14/1200 is available for immediate purchase, ideal for industrial safety applications in normal industrial environments.
