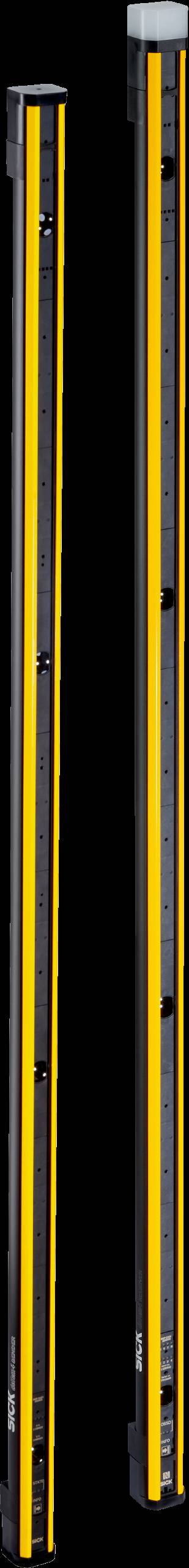

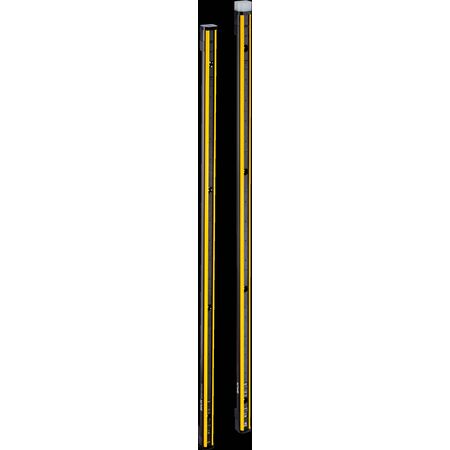

Safety Light Curtain deTem | 90m Scanning Range | PL e, SIL 3 Safety Level | by SICK
The deTem Safety Light Curtain is designed for access protection in automated material flows, featuring a large scanning range of up to 90 meters and advanced human-material differentiation. Ideal for industrial automation, this sensor ensures compliance with safety standards while providing remote diagnostics via IO-Link and NFC, making it perfect for manufacturing and logistics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Curtain deTem | 90m Scanning Range | PL e, SIL 3 Safety Level | by SICK
Brand: SICK
SKU: 1128440
Alternatively Known As: Safety light curtain, Safety light barrier, Access protection sensor, Industrial safety sensor
Technical Specifications
- Protective operation, beam coding, restart interlock, external device monitoring (EDM)
- Differentiation between person and material
- Visual display on device, Application diagnostic output (ADO)
- Smartphone app via NFC (SICK Safety Assistant)
- PC software via IO-Link (SOPAS) and DMM4 (Safety Designer)
- End cap with integrated LED
- Safety level: PL e, SIL 3, Type 4
- Number of beams: 4
- Beam separation: 300 mm
- Scanning range: 90 m
- Housing material: Aluminum extruded profile
- Connection type: Plug, M12, 5-pin, male connector M12, 8-pin
- Ambient operating temperature: -30 °C to 55 °C
- Enclosure rating: IP65, IP67
- Functional principle: Sender/receiver
- System part: pair
- Type of human-material differentiation: Simple 2-signal muting, Flexible 2- or 4-signal muting
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 2.5 kg
Key Features
- Large scanning range up to 90 m in a compact housing
- Integrated alignment aids with status LEDs and alignment laser visible up to 90 m
- Remote and on-site diagnosis via IO-Link and NFC
- Flexible 2- and 4-signal muting options
- Core variants for cost-efficient protection
- Standardized connection, operating and accessories concept
Professional Installation Requirements
- Installation by qualified safety system professionals or certified electricians is recommended to ensure compliance with safety standards and optimal sensor alignment.
Applications
- Access protection in automated material flows
- Human-material differentiation in industrial automation
- Safety monitoring in manufacturing and logistics
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces waste and downtime by enabling precise and reliable safety monitoring
- Supports energy-efficient automation processes through advanced diagnostics
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The SICK deTem Safety Light-Beam Sensor is available now for immediate purchase. Ideal for industrial safety and automated material flow applications.
