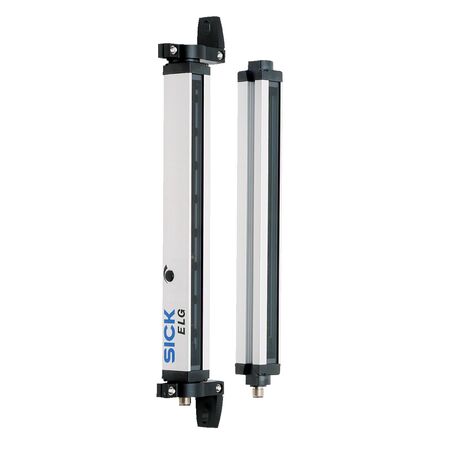

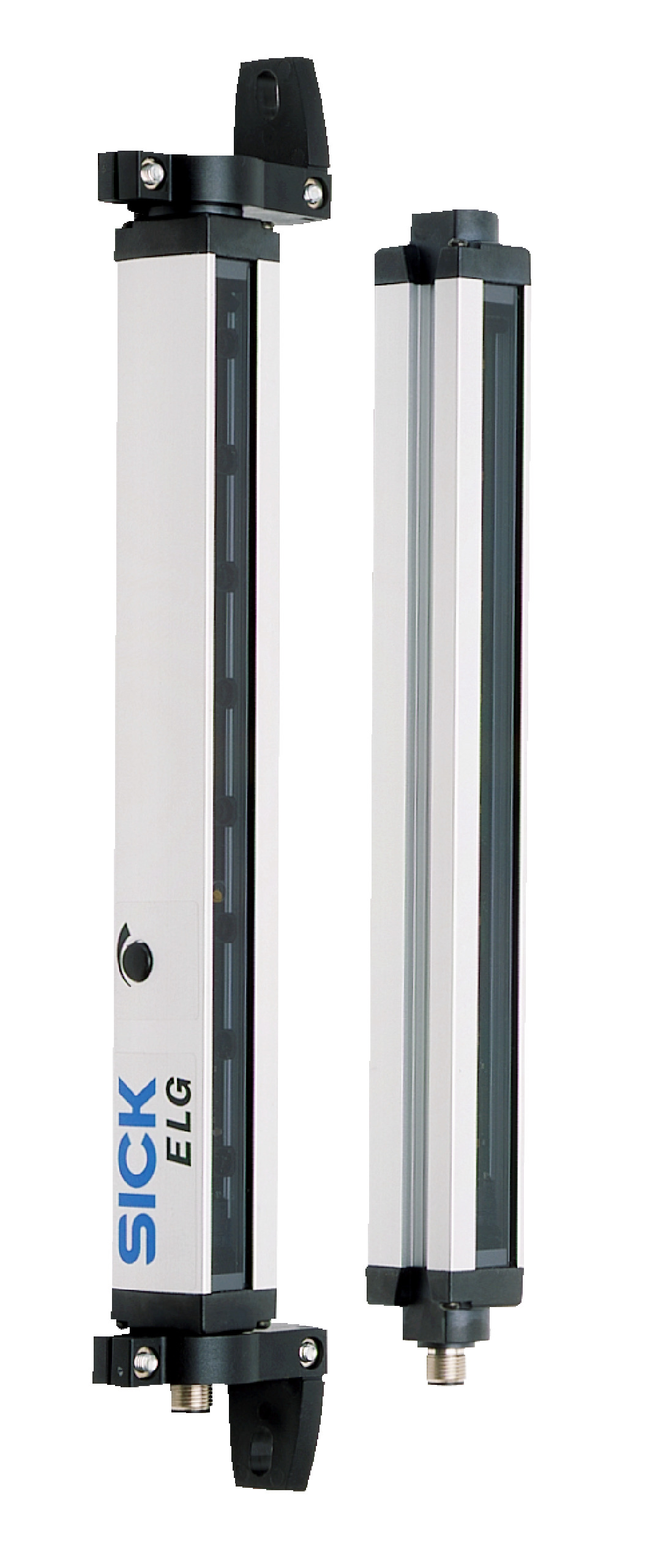

Safety Light Curtain ELG3-0390P591S32 | 14 Beams & 30mm Separation | IP65 Rated | by SICK
The Safety Light Curtain ELG3-0390P591S32 features a minimum detectable object size of 35 mm and 14 parallel evaluation beams with 30 mm beam separation, making it ideal for industrial automation safety and machine guarding. With robust aluminum housing and an IP65 enclosure rating, it ensures reliable performance in hazardous environments, providing personnel protection and access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Minimum detectable object (MDO): 35 mm
- Beam separation: 30 mm
- Number of beams: 14
- Detection height: 390 mm
- Wave length: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 313 kHz
- Front screen: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 0 mm
- Operating range: 1.5 m
- Response time: 14 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 466mm x 29mm x 34mm
- Weight: 1.4 kg
Key Features
- Minimum detectable object size of 35 mm
- 14 parallel evaluation beams with 30 mm beam separation
- Detection height of 390 mm
- Optical synchronization
- LED indication for status
- Robust aluminum housing with IP65 enclosure rating
- Short-circuit and reverse polarity protected outputs
- High pulse frequency of 313 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and industrial safety standards to ensure proper setup and compliance.
Applications
- Industrial automation safety
- Machine guarding
- Personnel protection in manufacturing environments
- Access control in hazardous areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable aluminum housing reduces waste through long product life
- Supports safer industrial environments reducing accident-related environmental impacts
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ELG3-0390P591S32 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine guarding applications.
