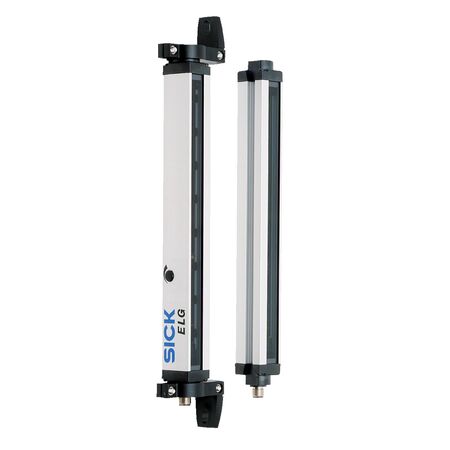

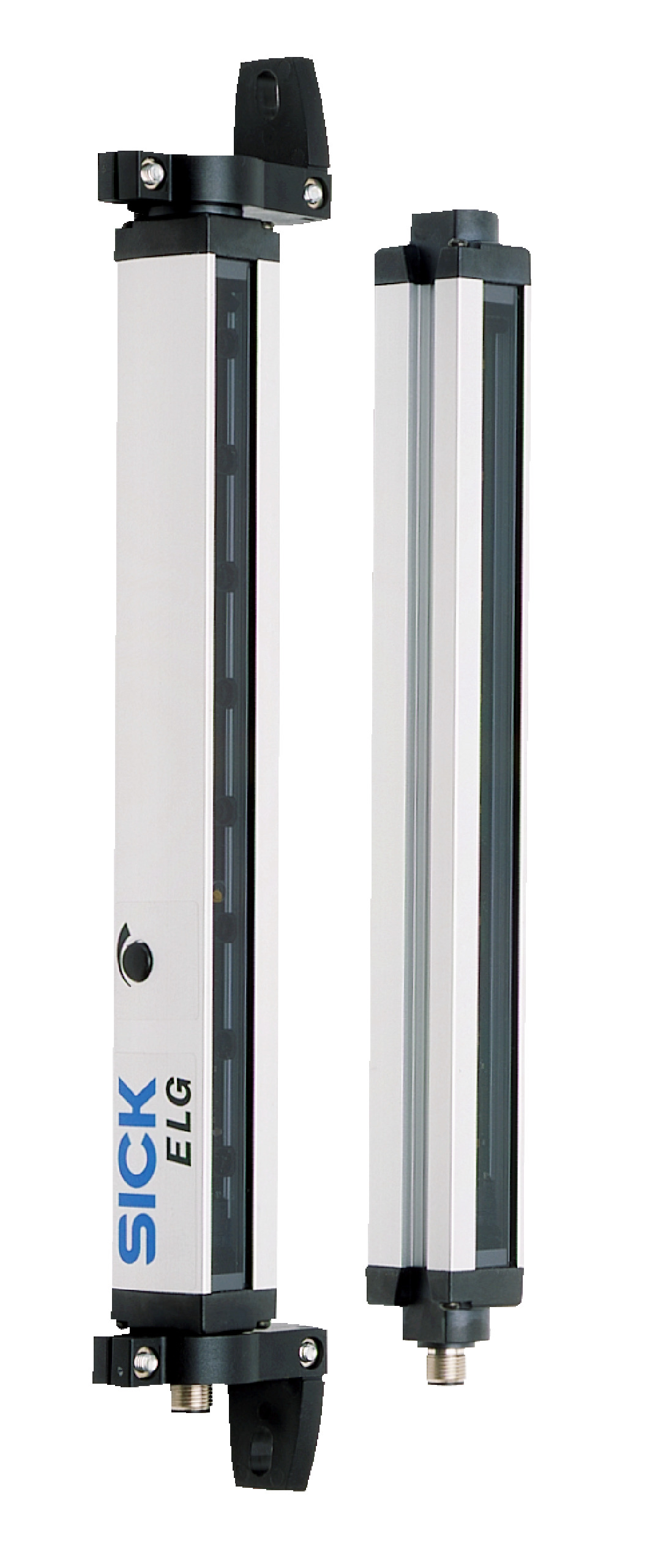

Safety Light Curtain ELG3-0690N511 | 24 Beams & 690mm Detection Height | IP65 Rated Aluminum | by SICK
The Safety Light Curtain ELG3-0690N511 features 24 parallel beams with a 690 mm detection height, making it ideal for industrial safety and automation applications. With a minimum detectable object size of 35 mm and robust IP65 rated aluminum housing, this sensor ensures reliable performance in harsh environments, providing essential protection for machinery and personnel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Curtain ELG3-0690N511 | 24 Beams & 690mm Detection Height | IP65 Rated Aluminum | by SICK
Brand: SICK
SKU: 1041956
Alternatively Known As: Safety Light Curtain, Safety Sensor, Light Barrier, Machine Safety Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 24
- Detection height: 690 mm
- Evaluation beams: Parallel beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x NPN
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 0 mm
- Operating range: 2 m
- Response time: 100 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 766mm x 29mm x 34mm
- Weight: 2.1 kg
Key Features
- 24 parallel beams with 690 mm detection height
- Minimum detectable object size of 35 mm
- Sender/receiver sensor principle with optical synchronization
- High shock and vibration resistance
- LED indication for operational status
- IP65 rated aluminum housing for robust protection
- Short-circuit and reverse polarity protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety light curtain for machine safeguarding
- Automation systems requiring object detection and presence sensing
- Safety applications in manufacturing and processing plants
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Low power consumption with less than 100 mA per sender and receiver
- Enhanced machine safety reduces risk of accidents and associated environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ELG3-0690N511 Safety Light Curtain Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
