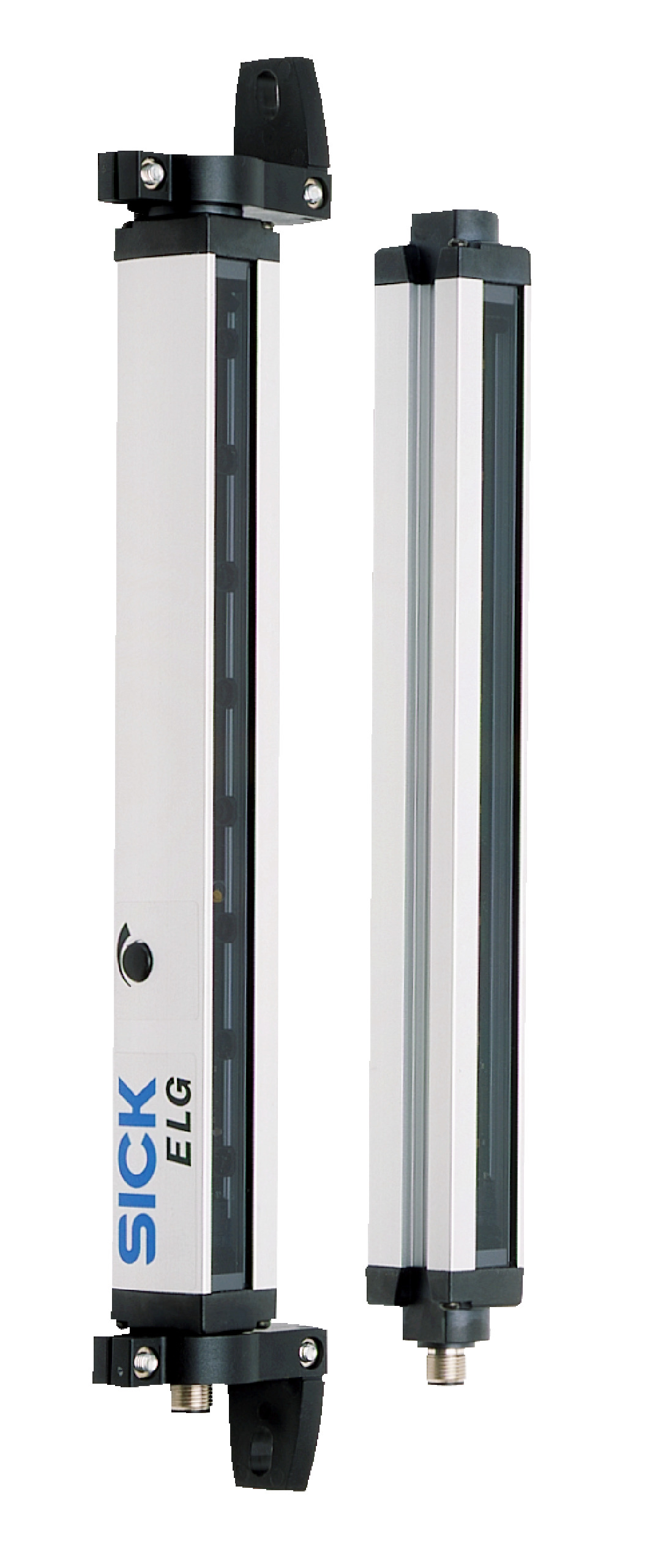

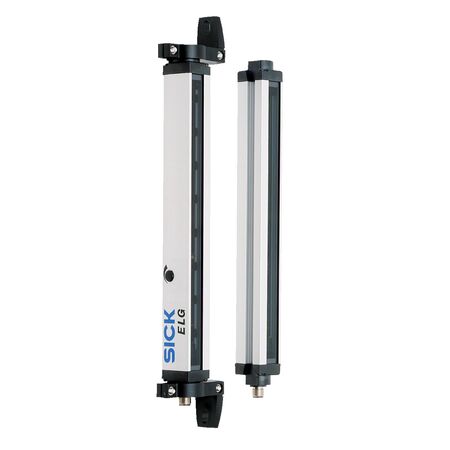

Safety Light Curtain ELG3-0690P511 | 24 Beams & IP65 Rated | 690mm Detection Height | by SICK
The Safety Light Curtain ELG3-0690P511 features a sender/receiver sensor principle with 24 parallel beams, ensuring reliable object detection with a minimum detectable size of 35 mm. With a robust IP65-rated aluminum housing, it's perfect for industrial safety applications, providing optimal performance in manufacturing lines and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Curtain ELG3-0690P511 | 24 Beams & IP65 Rated | 690mm Detection Height | by SICK
Brand: SICK
SKU: 1025499
Alternatively Known As: Safety Light Curtain, Safety Sensor, Machine Guarding Light Barrier, Presence Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Number of beams: 24
- Detection height: 690 mm
- Beam separation: 30 mm
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender and receiver: < 100 mA each
- Output current max: ≤ 100 mA
- Output type: 2 x PNP, Q dark switching
- Initialization time: 1 second
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP65
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen material: PMMA
- Response time: 100 ms
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 766mm x 29mm x 34mm
- Weight: 2.1 kg
Key Features
- Sender/receiver sensor principle with 24 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 690 mm with 30 mm beam separation
- Operating range up to 2 meters with maximum range of 3 meters
- Robust aluminum housing with IP65 enclosure rating
- LED indication and optical synchronization
- Short-circuit and reverse polarity protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial safety light curtain for machine safeguarding
- Object detection and presence sensing in manufacturing lines
- Automation and robotics safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK ELG3-0690P511 Safety Light Curtain Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
