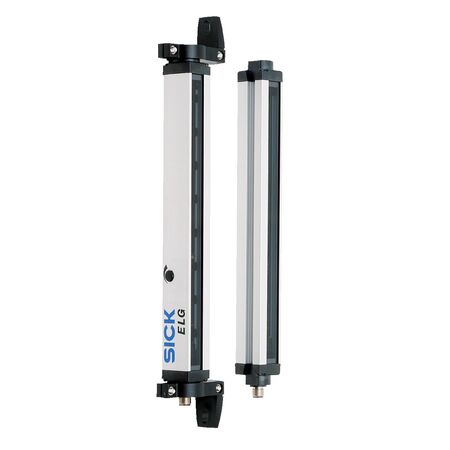

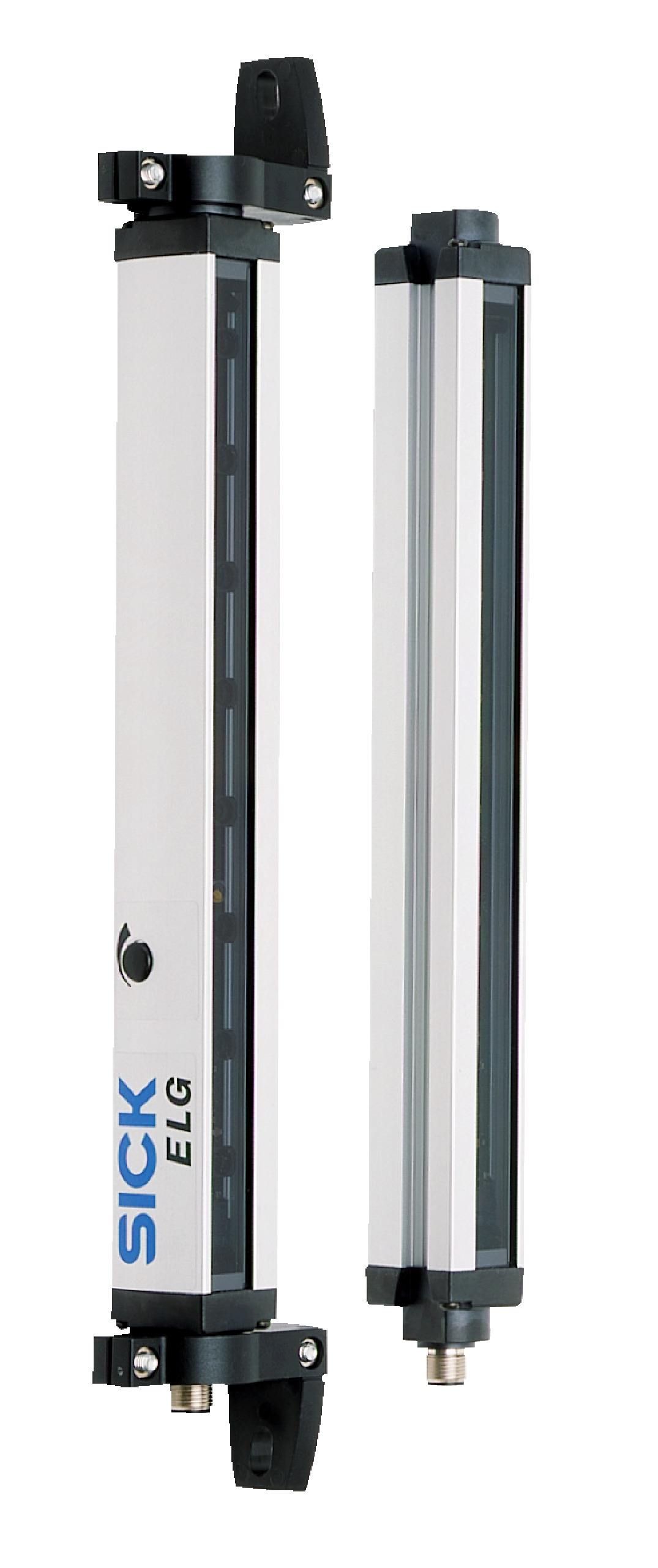

Safety Light Curtain ELG3-0930P511 | 32 Beams & 930mm Detection Height | IP65 Rated | by SICK
The Safety Light Curtain ELG3-0930P511 features a sender/receiver sensor principle with 32 parallel beams, ensuring reliable object detection with a minimum detectable size of 35 mm. Designed for industrial safety applications, this robust sensor offers a detection height of 930 mm and an operating range of up to 2 meters, making it ideal for machine safeguarding and factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Curtain ELG3-0930P511 | 32 Beams & 930mm Detection Height | IP65 Rated | by SICK
Brand: SICK
SKU: 1025492
Alternatively Known As: Safety Light Curtain, Safety Sensor, Light Barrier, Machine Safety Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 32
- Detection height: 930 mm
- Wave length: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 0 mm
- Operating range: 2 m
- Response time: 100 ms
- Shock resistance: 10 g / DIN EN 60068-2-29 / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 68-2-6)
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 1006mm x 29mm x 34mm
- Weight: 2.6 kg
Key Features
- Sender/receiver sensor principle with 32 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 930 mm with beam separation of 30 mm
- Operating range up to 2 meters with maximum range of 3 meters
- Robust aluminum housing with IP65 enclosure rating
- LED indication and optical synchronization
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical safety standards and machine safety regulations.
Applications
- Industrial safety light curtain for machine safeguarding
- Automation systems requiring object detection and presence sensing
- Factory automation and production line safety
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial settings
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ELG3-0930P511 Safety Light Curtain Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
