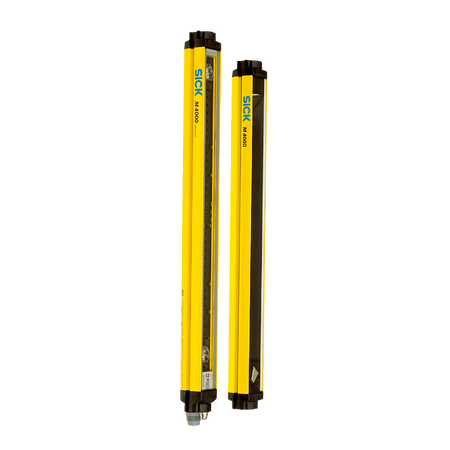

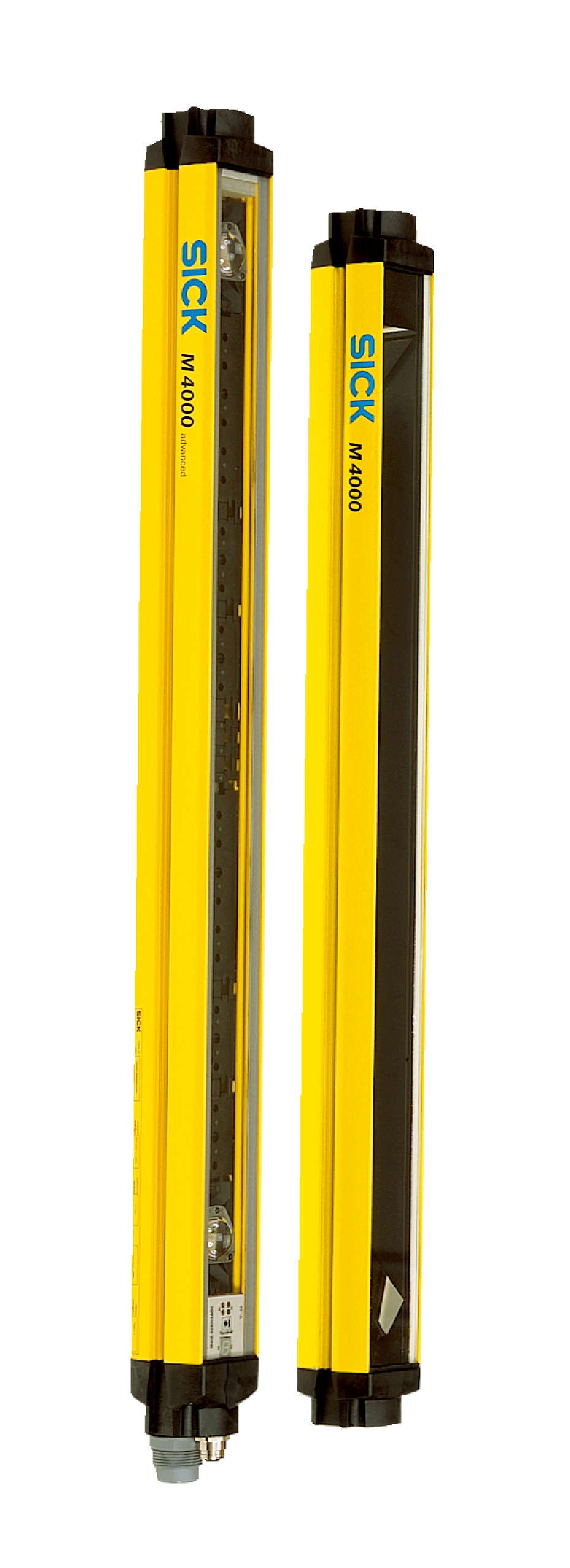

Safety Light Curtain M40Z-025023RB0 | Active/Passive Function | 0.5m to 7.5m Scanning Range | IP65 Rated | by SICK
The Safety Light Curtain M40Z-025023RB0 is designed for industrial safety, featuring an active/passive functional principle with mirror deflection and a scanning range of 0.5m to 7.5m. With a response time of just 10 ms and optical synchronization, it ensures reliable personnel protection in manufacturing environments. Built to Type 4 safety standards, this curtain is perfect for access control and hazard area monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain, Industrial Safety Sensor, Machine Safety Light Barrier, SICK Safety Sensor
Technical Specifications
- Functional principle: Active/passive
- System part: Pair
- Type of diversion: Mirror deflection
- Scanning range: 0.5 m to 7.5 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 10 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Beam coding, Restart interlock, External device monitoring (EDM), Configurable diagnostic output
- System connection: Hirschmann male connector M26, 12-pin
- Permitted cable length: 50 m
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Display elements: LEDs and 7-segment display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Housing material: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 55mm x 150mm x 52mm
- Weight: 1.5 kg
Key Features
- Active/passive functional principle with mirror deflection type of diversion
- Scanning range from 0.5 m to 7.5 m with 2 beams and 500 mm beam separation
- Response time of 10 ms with optical synchronization
- Type 4 safety (IEC 61496-1) with SIL 3 (IEC 61508) and Category 4 (EN ISO 13849)
- Flexible, configurable 4-signal muting for differentiation between man and material
- System connection via Hirschmann male connector M26, 12-pin with 50 m permitted cable length
- LED and 7-segment display elements for status indication
- Housing made of powder coated aluminum alloy with polycarbonate scratch-resistant front screen
- Protection class III (IEC 61140) and IP65 enclosure rating
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with occupational health and safety standards.
Applications
- Industrial safety for machinery and automation
- Personnel protection in manufacturing environments
- Access control and hazard area monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Long mission time of 20 years reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK M40Z-025023RB0 PSD01-1501 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
