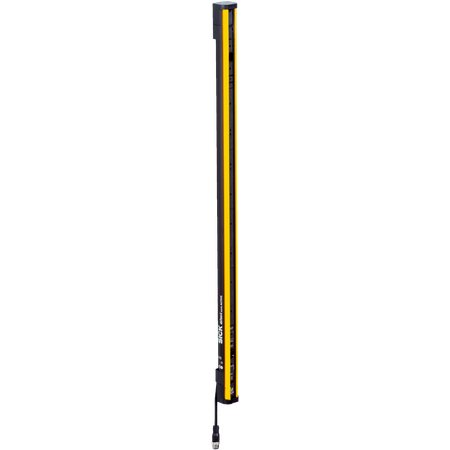

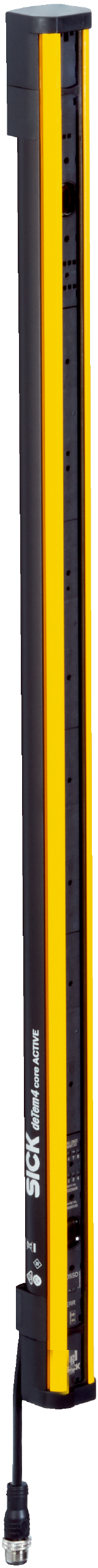

Safety Light Curtain M4C-ZA02500C10 | Active/Passive Function | 3.2m Scanning Range | SIL 3 Safety Level | by SICK
The M4C-ZA02500C10 safety light curtain is designed for industrial safety applications, featuring an active/passive functional principle and a scanning range of 3.2 meters with 2 beams. With a rapid response time of 20 ms and SIL 3 safety integrity, it ensures reliable presence detection in normal industrial environments, making it ideal for enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain, Industrial safety sensor, deTem4 Core safety light barrier, Active safety light curtain
Technical Specifications
- Product version: deTem4 Core A/P
- Functional principle: Active/passive
- System part: Active unit
- Scanning range: 3.2 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 20 ms
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 5.3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin
- Display elements: LEDs
- Alignment aid: Diagnostic LEDs
- NFC: Yes
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: 2.4 W
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Housing cross-section: 31 mm x 34 mm
- Housing material: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Weight: 550 g ± 50 g
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.55 kg
Key Features
- Active/passive functional principle
- Scanning range of 3.2 m with 2 beams and 500 mm beam separation
- Response time of 20 ms
- Type 4 safety according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) with Performance level PL e
- Safe state in the event of a fault: at least one OSSD is OFF
- LED display elements with alignment aid via diagnostic LEDs
- Near Field Communication (NFC) enabled
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption typical 2.4 W
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing made of aluminum extruded profile with polycarbonate scratch-resistant front screen
- Enclosure rating IP65 and IP67
- Operating temperature range -30 °C to +55 °C
- Storage temperature range -30 °C to +70 °C
- Vibration resistance 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance 15 g / 6 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety equipment and electrical standards to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 2.4 W reduces energy usage
- Durable materials and long mission time of 20 years reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK M4C-ZA02500C10 safety light curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable presence detection.
