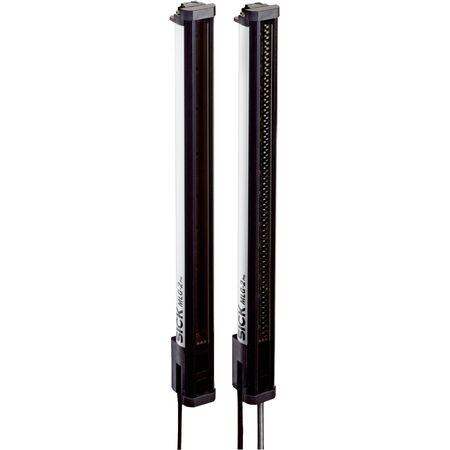

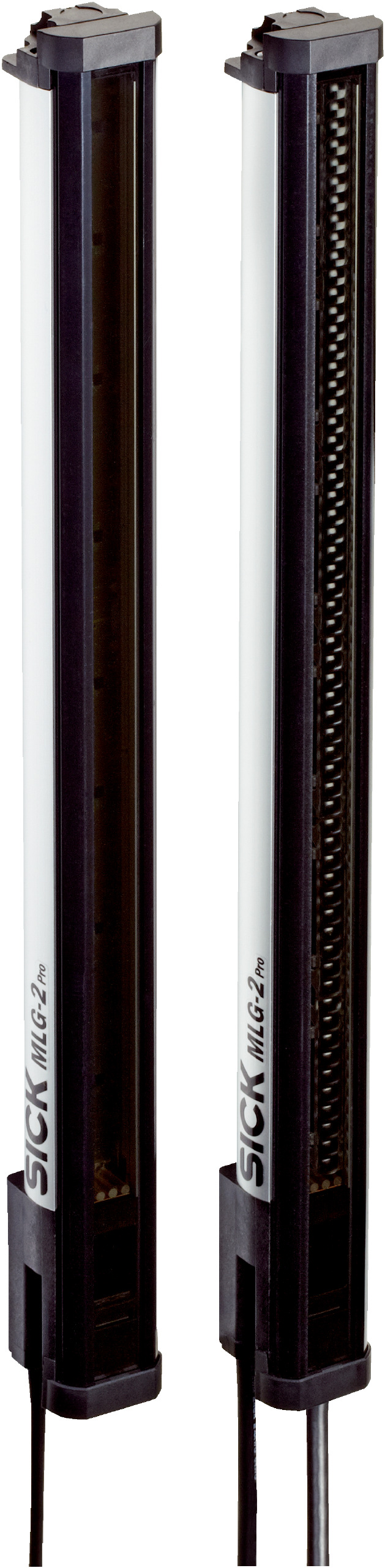

Safety Light Curtain MLG10A-1790I10501 | 180 Beams | IP65/IP67 Protection | 10mm Minimum Object Detection | by SICK
The Safety Light Curtain MLG10A-1790I10501 is designed for precise object detection and measurement in industrial settings. With 180 beams and a minimum detectable object size of just 10mm, it ensures high accuracy and reliability. Featuring robust IP65/IP67 protection and an aluminum housing, this curtain is perfect for safety guarding and automation applications, making it an essential tool for any industrial environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 1790mm x 70mm x 50mm
- Weight: 3.85 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 180 beams
- Minimum detectable object size of 10 mm
- Detection height of 1790 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67 for robust protection
- Aluminum housing with PMMA front screen
- RS-485 and IO-Link V1.1 interfaces for data communication
- Response time of 15.2 ms and operating range of 5 m
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for safety and automation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing and robust IP65/IP67 protection reduce waste and extend product life
- Energy-efficient LED infrared light source minimizes power consumption
- High measurement accuracy reduces errors and material waste in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG10A-1790I10501 Safety Light Curtain is available for immediate purchase. Ideal for industrial automation, safety guarding, and object measurement applications.
