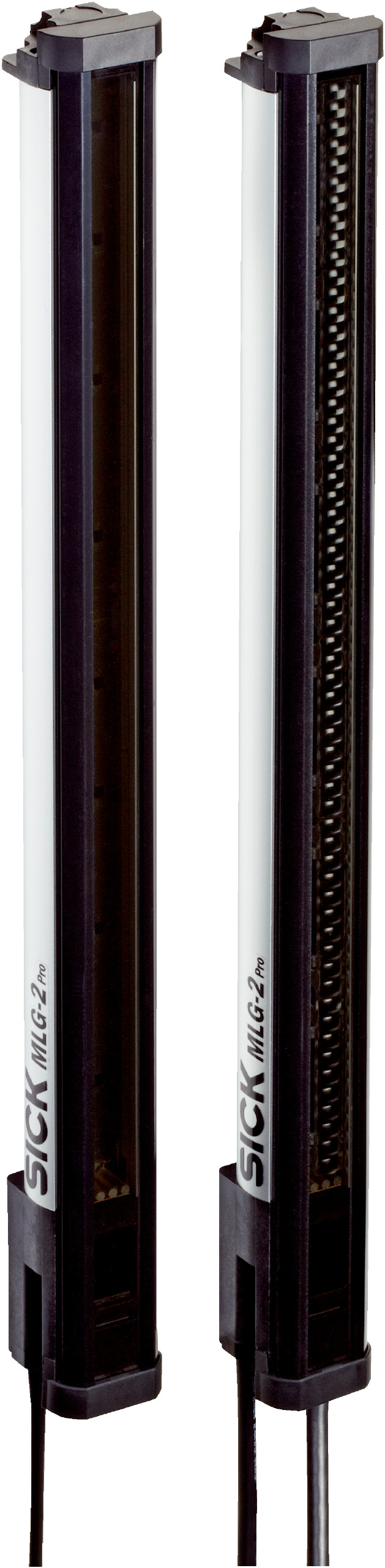

Safety Light Curtain MLG20A-1940B10501 | Pro Device with 98 Beams | IP65 & IP67 Rated | by SICK
The MLG20A-1940B10501 safety light curtain is designed for precise object detection and measurement in industrial settings. With a pro device version featuring 98 beams and a minimum detectable object size of 20 mm, it ensures high measurement accuracy. Its robust IP65 and IP67 ratings make it ideal for both indoor and outdoor applications, providing reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Number of beams: 98
- Detection height: 1940 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Light source: LED, Infrared light (850 nm)
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 59.9 mA
- Power consumption receiver: 139.6 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: M12 connectors (5-pin, 8-pin, 4-pin D-coded)
- Housing material: Aluminum
- Enclosure rating: IP65, IP67
- Response time: 8.9 ms
- Maximum range: 7 m
- IO-Link V1.1 support with 230.4 kbit/s data rate
- Analog output current: 4 mA to 20 mA
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30 °C to +55 °C
- Dimensions (H x L x W): 1940mm x 50mm x 50mm
- Weight: 4.15 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 98 beams
- Minimum detectable object size of 20 mm
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67 for robust protection
- Cable synchronization type
- QuickFix brackets included for easy installation
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, safety compliance, and optimal performance.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for safety and automation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG20A-1940B10501 safety light curtain is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
